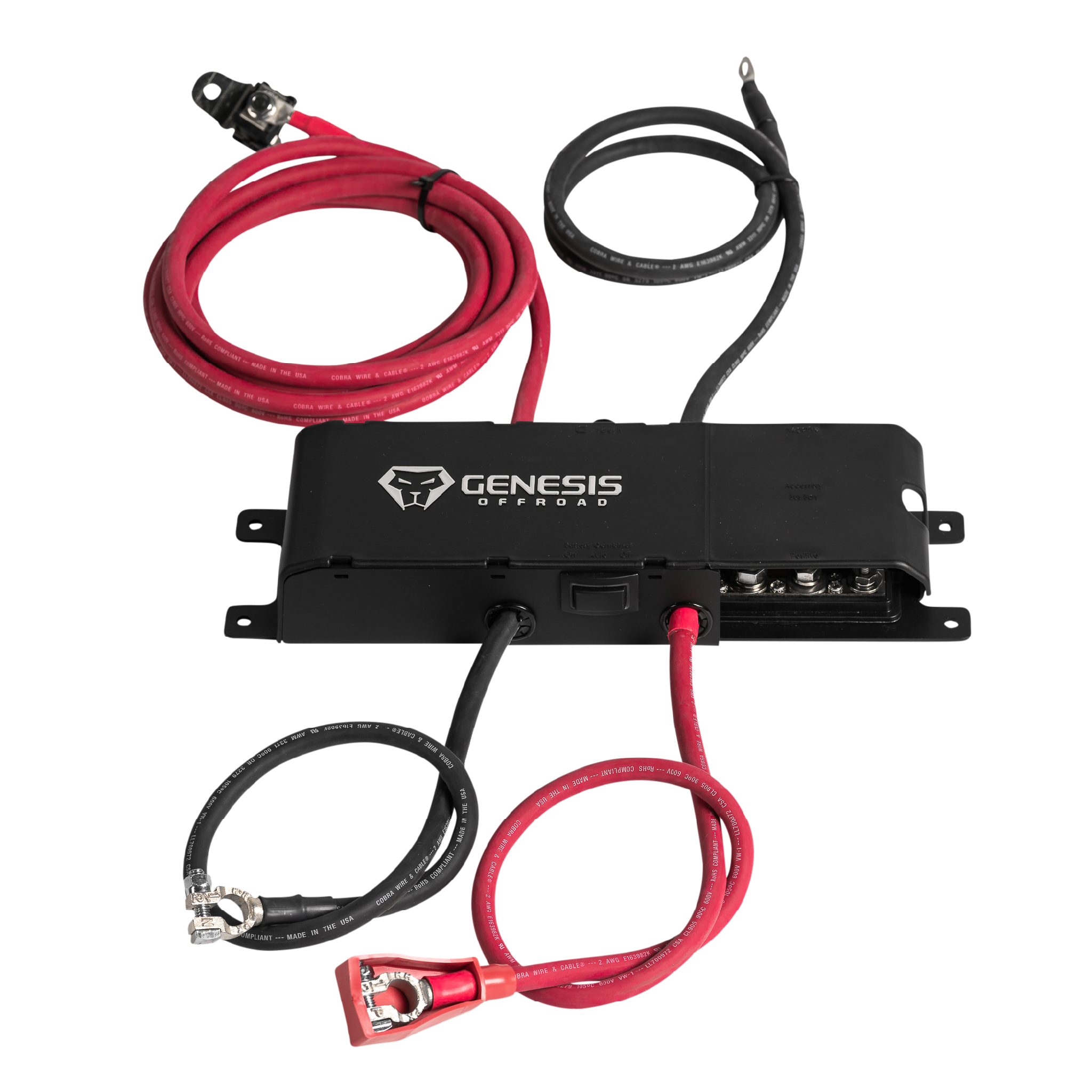

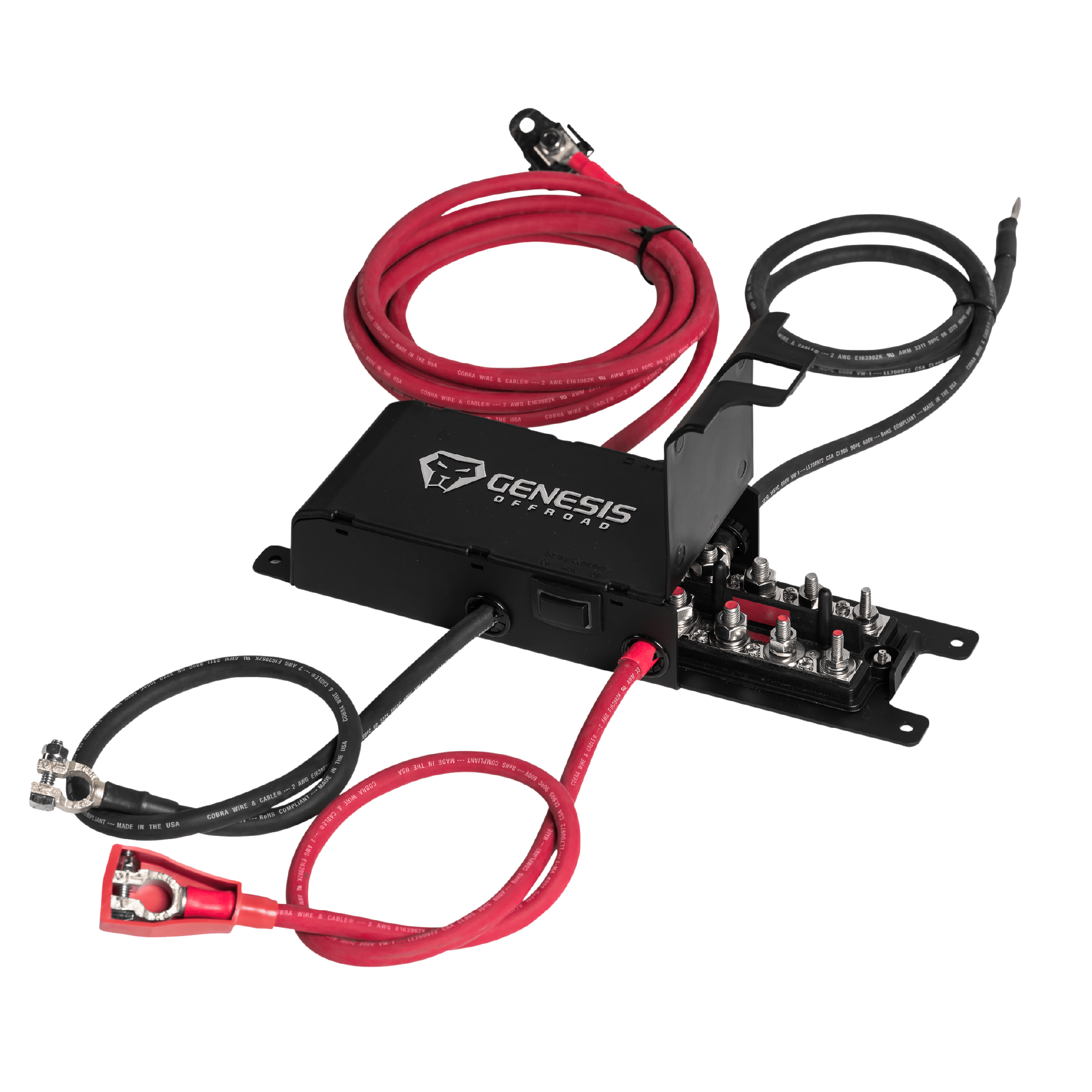

Universal Power Hub
Need a dual battery system, but Genesis Offroad doesn't make a kit specifically for your vehicle? No problem! You can use our Universal Power Hub to easy install a remotely mounted dual battery system into any vehicle! All the wiring and electrical work is done for you already, simply run the wires from one side of the power hub to your cranking battery, and the wires from the other side to your accessory battery and you're done! Now you can have all of the same great features that are included in all of our Gen 3 dual battery systems in any vehicle! Pair this universal power hub with our adjustable battery brackets for an easy installation.
Universal Power Hub
Sale price$599.00
POWER HUB

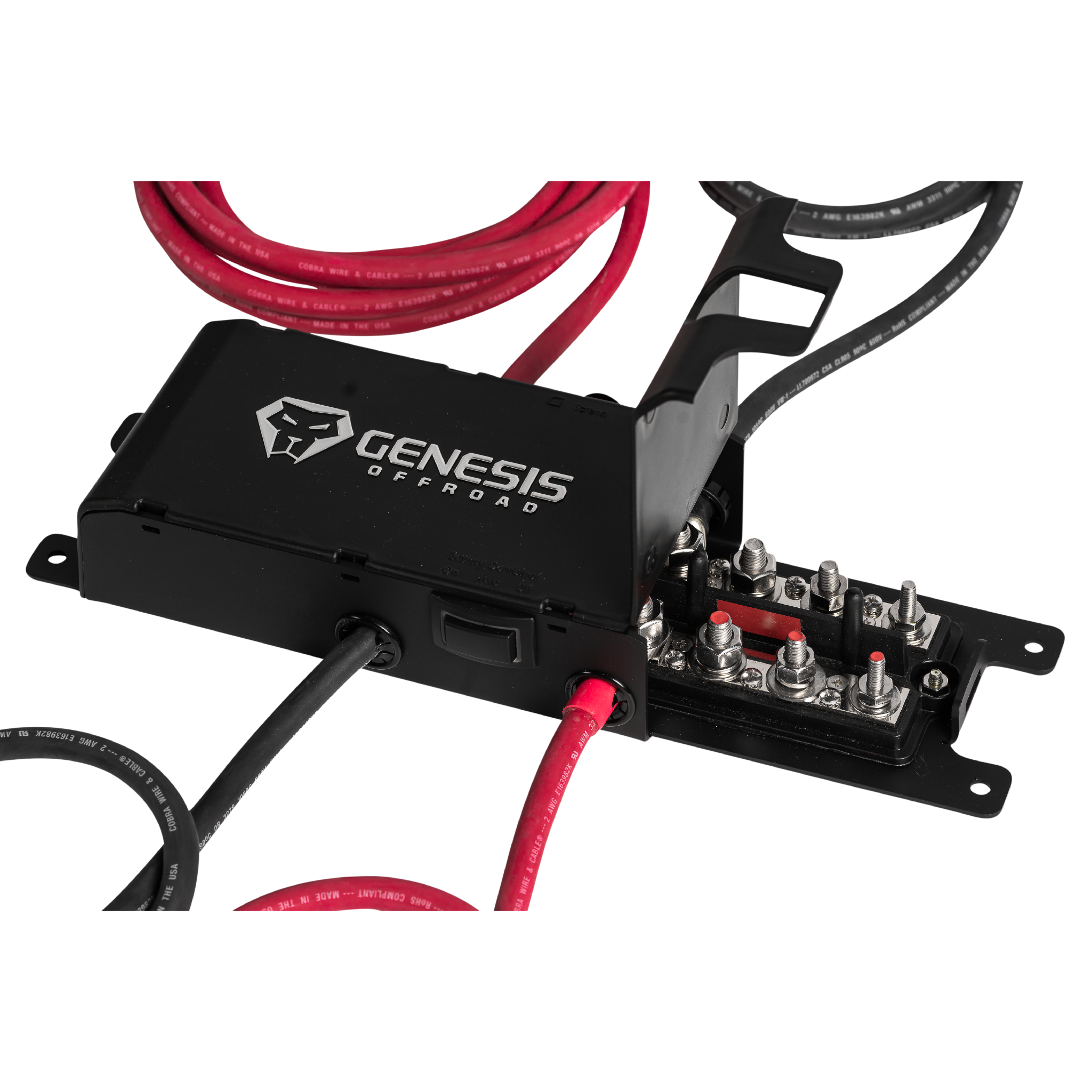

Take a deeper look at the GEN 3 Universal Power Hub

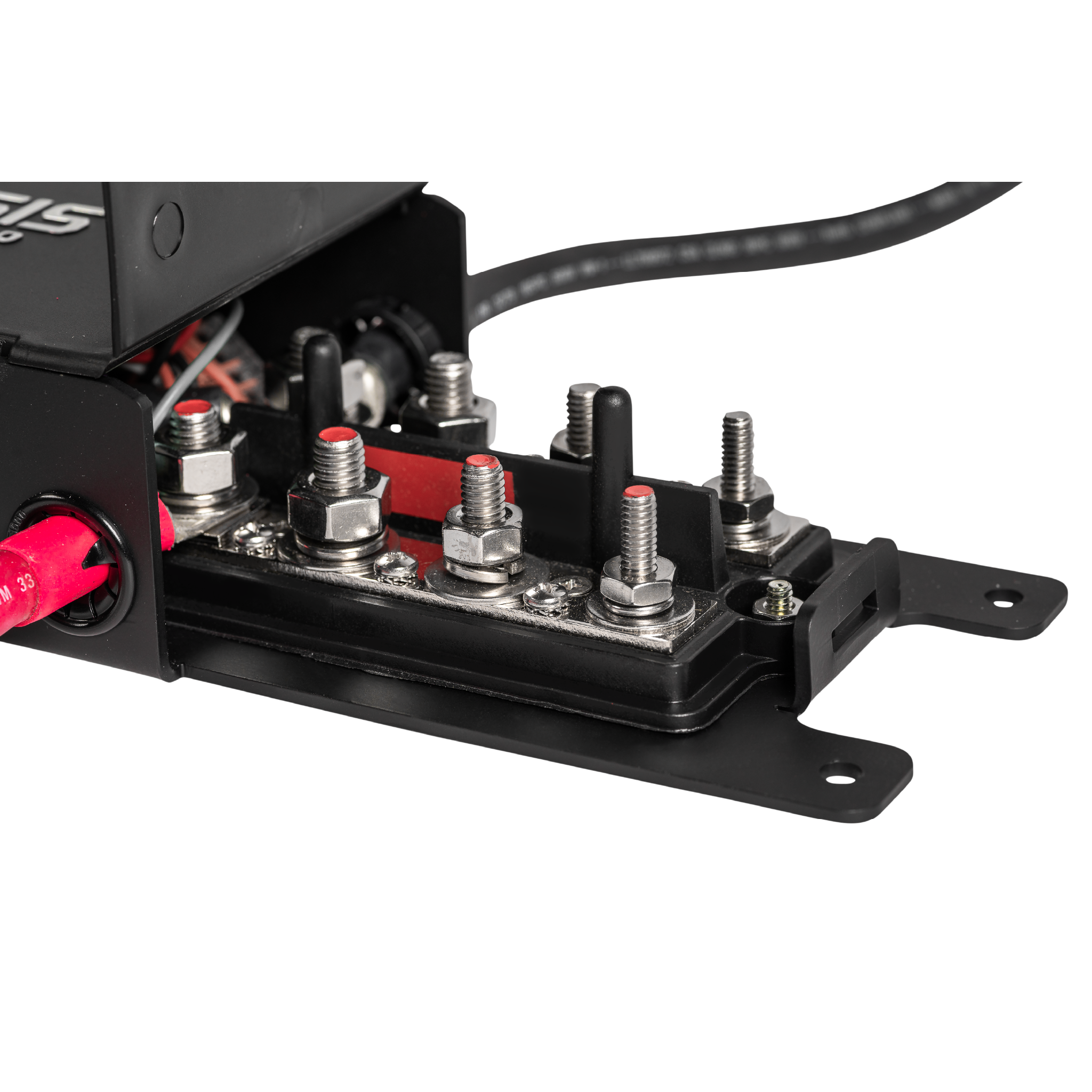

Bus Bars
Adding electrical accessories to your vehicle has never been easier!
3 sizes of studs for connecting heavy wires like your winch, stereo amps, fuse boxes, air compressor, etc. Connect smaller ring terminals to the small screws.
Boost Switch
- Auto - Connects/Disconnects the batteries automatically based on their voltage level
- On - Manually connects the batteries together just like jumper cables to help start the engine
- Off - Manually separates the batteries
G Screen Port
Plug in our optional G Screen Monitoring System with a single cable to keep an eye on your system.
G Screen InfoHow It Works
The heart of the system is a smart battery combiner that handles connecting / disconnecting the batteries automatically.
When the engine starts, it allows the engine to charge the cranking battery first, then links the batteries together in parallel so they can both be charged by the alternator.
Once it sees the voltage drop below ~12.7v for a minute, it will separate the batteries. Your accessories connected to the bus bars continue to run from the second battery and won't drain your cranking battery.
The Positive and Negative bus bars have 3 different size studs - - 3/8", 5/16", and 1/4" diameter for heavy cables for a winch, air compressor, fuse box, etc, and three #10 screws for attaching smaller ring terminals for your low amp accessories such as small LED lights.

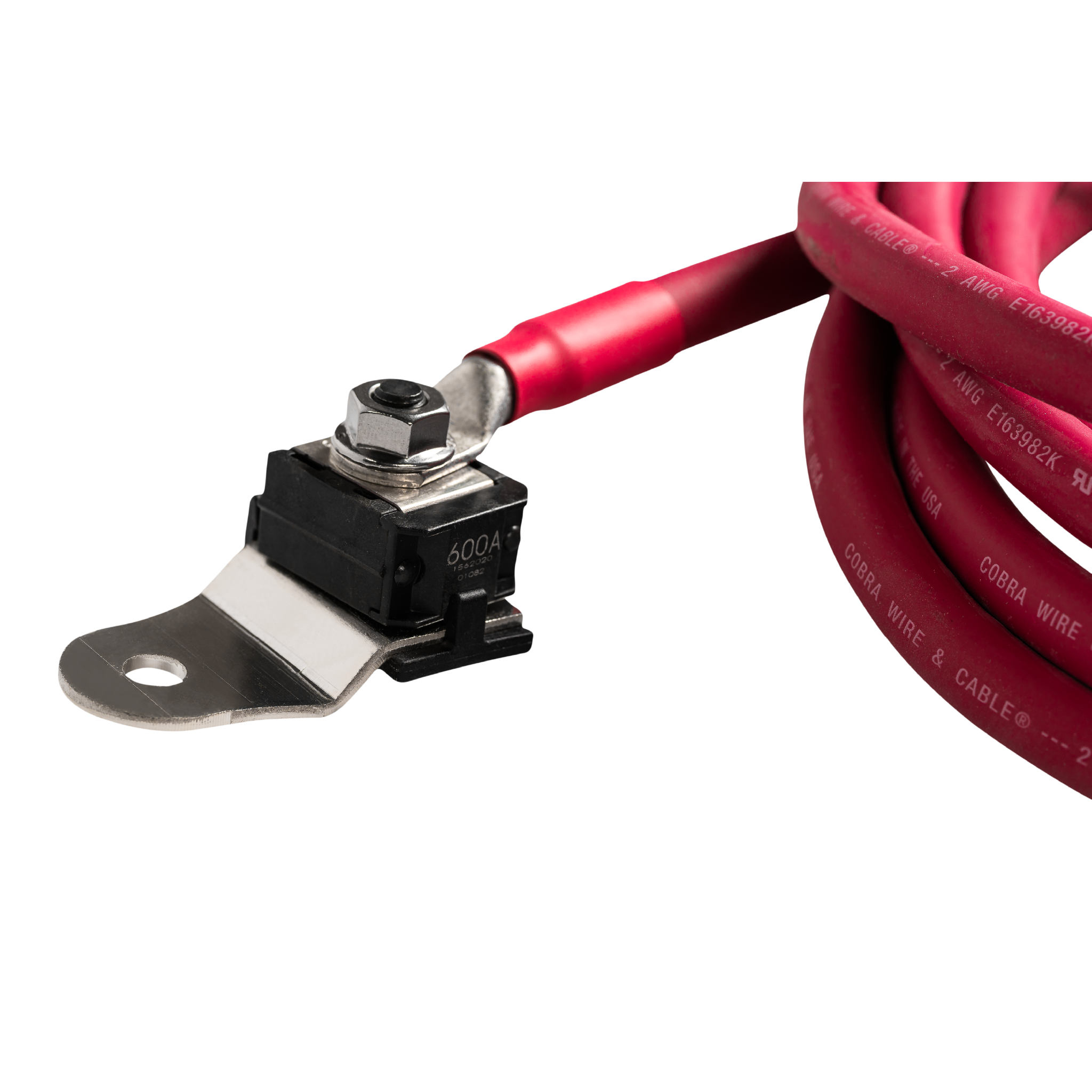

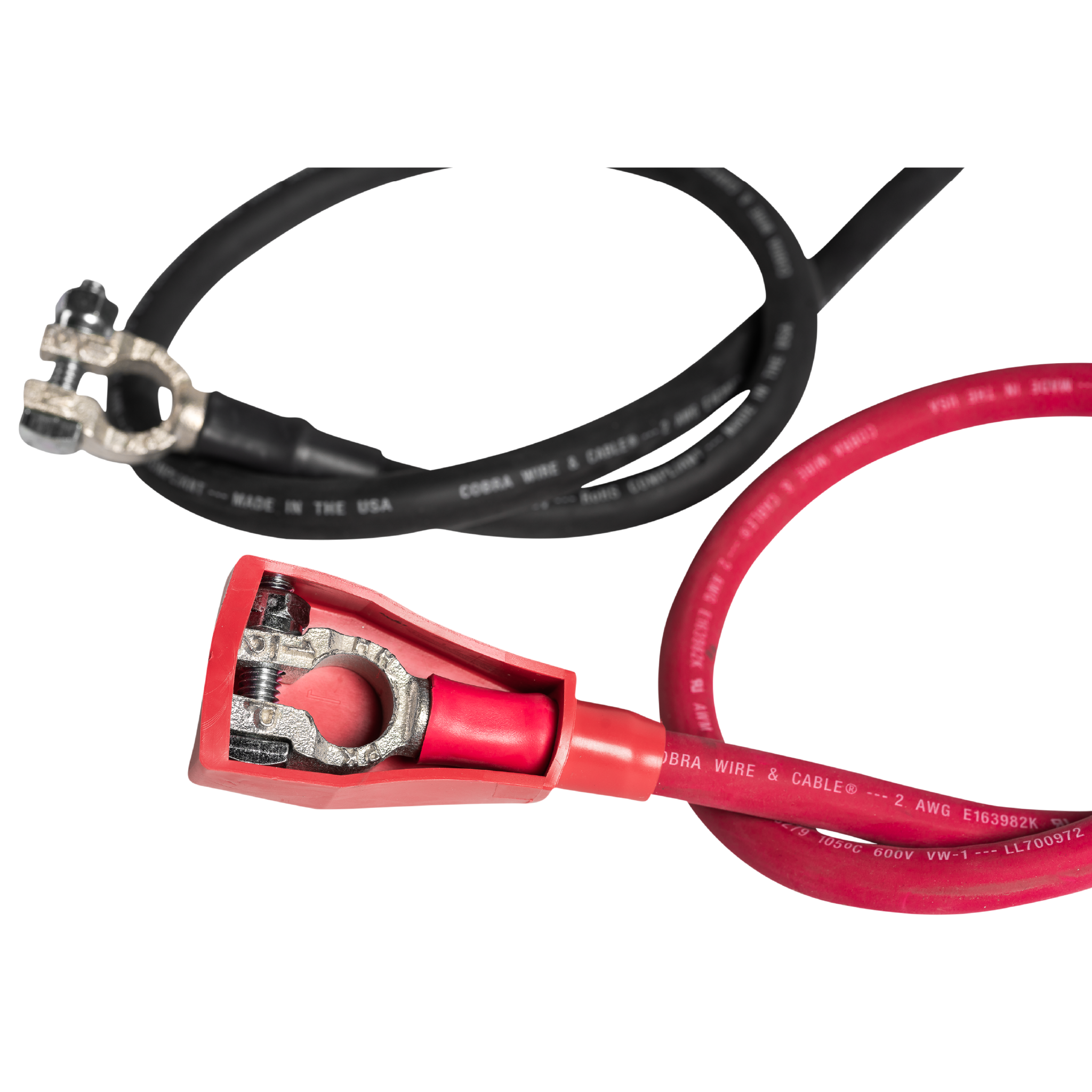

Our battery cables are made with 2ga heavy duty, high strand count, pure copper welding cable. Why welding cable instead of battery cable? It's more flexible, more conductive, with a thicker, more abrasion resistant jacket for ultimate durability. The lugs are made of pure copper and tin plated which is more conductive and eliminates corrosion, then covered with an extra thick, adhesive-lined heat shrink material to fully seal the ends of the copper wire for long lasting performance.
- Cranking Battery Positive - 13 Feet
- Cranking Battery Negative - 48"
- Aux Battery Positive - 32"
- Aux Battery Negative - 32"
Because this Universal version of our Power Hub may be installed in a wide variety of applications, it's hard to give an accurate installation time. You'll need to locate a spot to securely mount the Power Hub, then run 2 cables to the cranking battery, and the other 2 cables to your accessory battery. All the rest of the wiring is done for you. Generally speaking, about 2 hours labor is typical.
The Power Hub can be used with any type of batteries - as long as the cranking and the accessory batteries are of the same type. Do not mix battery types (such as AGM and lithium) because doing so will reduce the lifespan of both.
It can be installed in any orientation in any type of vehicle - truck, RV, boat, heavy equipment, including in wet areas since all the components are water resistant.
G Screen
Monitoring System
An Optional add-on for your dual battery system to see the status of your batteries.
G Screen for Gen 3 Dual Battery Systems
FAQ
How long will it take to get my order?
Our products ship from our office in Olive Branch, MS, just outside of Memphis, TN. We work hard to keep everything in stock for same day shipping on most orders placed by 3pm Central time. Click here to see a map showing transit times by UPS Ground for the USA. You may select Expedited Shipping services on the checkout page if faster delivery is needed. Tracking information will be provided when we create your shipping label.
How can I hook up solar panels?
Most people want to use solar panels to be able to run their accessories for as long as possible with the engine off. You can connect the solar charge controller directly to our power and ground bus bars. The solar charge will go into your aux battery first to replace the power used by your accessories. As long as the panel is big enough to keep up with the demand and charge up the battery, then our smart isolator will link them together, and the solar will flow over to the cranking battery as well
How do I connect a charger to keep both batteries charged?
You can connect a charger to your factory positive wire on the cranking battery and the factory negative wire on the aux battery. This way the trickle charger works just like your alternator - it will charge the cranking battery first for a couple minutes, then the smart isolator links the batteries together to charge the aux battery as well.
I left my headlights/radio/dome lights turned on, and now the engine won't crank. I thought the system would turn off the cranking battery to protect it from getting too low.
The factory positive wire harness feeds power directly to your fuse box, which means all of the factory circuits are powered from your cranking battery. The isolator does not turn off power to the fuse box. It 'isolates' the 2 batteries from each other, to protect your cranking battery from being drained by your aftermarket accessories that you have wired up to the bus bars. If you accidentally drain your cranking battery, that's when you'd use the boost button to jump start yourself from the second battery.
My factory post clamps won't get tight enough on the battery post. It is loose and causing weird electrical issues.
Most factory battery post clamps are made of light duty stamped sheetmetal, and stretch or wear out over time. First, make sure the post clamp is fully seated all the way to the bottom of the battery post. Try loosing up the post clamp nut so it is very loose, then use a large socket and gently tap the clamp down onto the post. Now tighten the clamp nut and see if it is secure. You can also try using a battery post shim, available from your local auto parts store, to fill the gap between the clamp and the post, allowing the clamp to tighten down more securely.
Do I need an sPOD, or is it unnecessary since the kit has the power and ground bus bars for hooking up my accessories?
The sPOD system from www.4x4spod.com is a great compliment to our dual battery system. It allows you to easy add electrical accessories that need a fuse, relay, and a switch. It does have limitations, however, with the amount of current that can be used through any one switch. For example, you can't control a winch with it due to the very high amp draw for the winch. Our bus bars are perfect for connecting accessories that need direct battery power, or for those that come with a wire harness that includes a fuse, relay, and switch.
How do I connect an sPOD system to the dual battery kit?
The sPOD source unit should be connected directly to our power and ground bus bars. This way, anything that you are controlling through the sPOD will get power from the aux battery, and will not drain down your cranking battery.
Do you ship overseas?
Yes, we ship all over the world. We have customers in over 53 countries! Shipping costs will be calculated before you checkout.
Customer Reviews
Overall rating: 5.0 / 5 from 9 reviews.

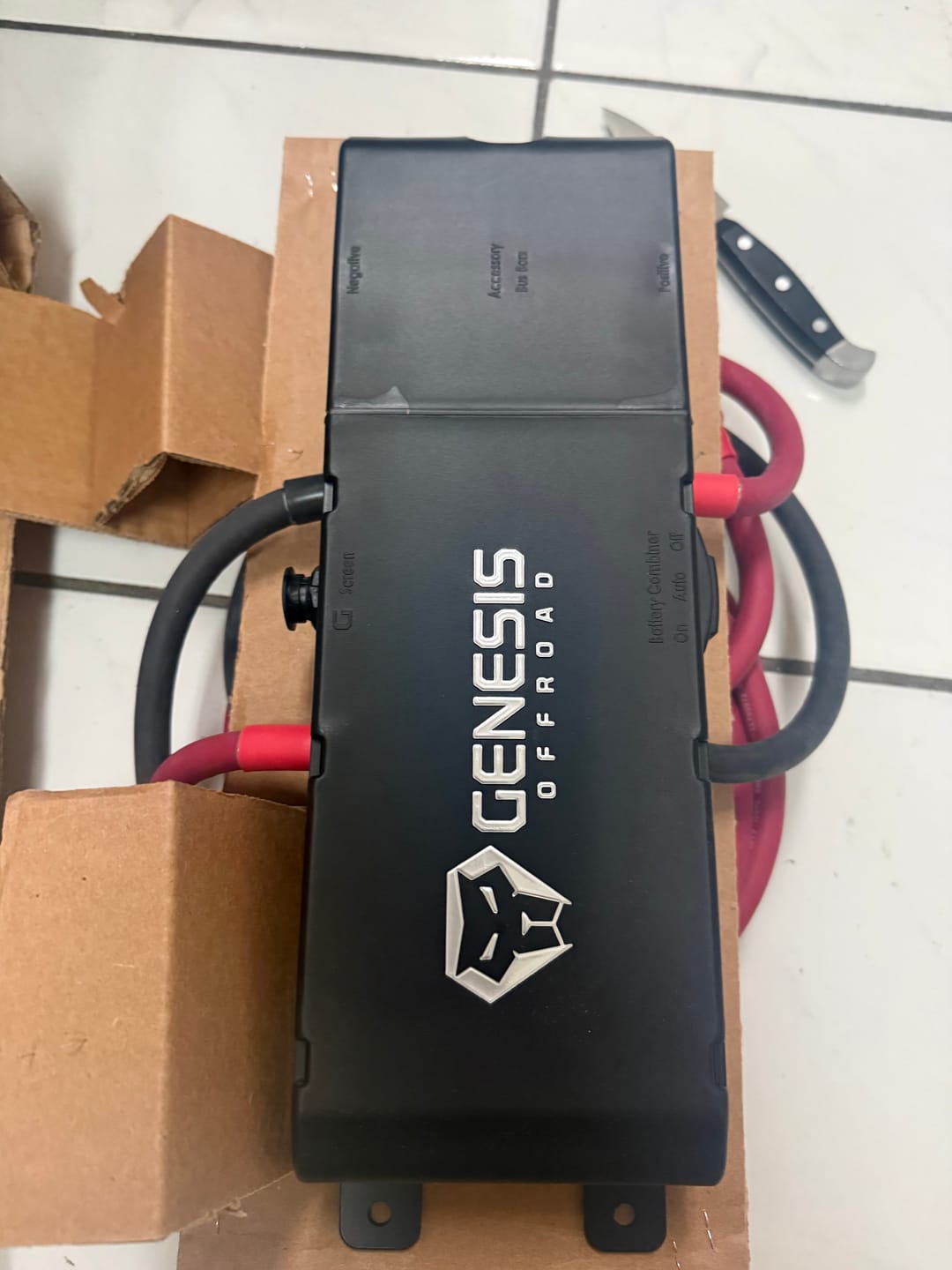

Haven’t installed it yet , however I could tell immediately when mocking it up ,the quality of the product is top notch . Thankyou
