Two Socket Accessory Panel

SKU: 171-12VP-2
In stock
Sale price$115.00

Accessory panels include a 15A circuit breaker switch and a 20' pre-wired harness.

Easy to install with flexible 12V charging and monitoring options.

Includes 1x 12V outlet and 1x USB-A/C.

USE AUX BATTERY TO CHARGE & POWER YOUR GEAR

PRE-WIRED

Panels include the Genesis Offroad 20' loomed harness w/20A inline fuse and an illuminated Carling Technologies 15A circuit breaker switch which allows the ability to shut off panel preventing parasitic draw.

POLYCARBONATE/ABS PANEL

Panel face is UV-stabilized, flame retardant, and will not corrode

EASY INSTALL

Simply connect to the power and ground bus bars on the Genesis dual battery kit.

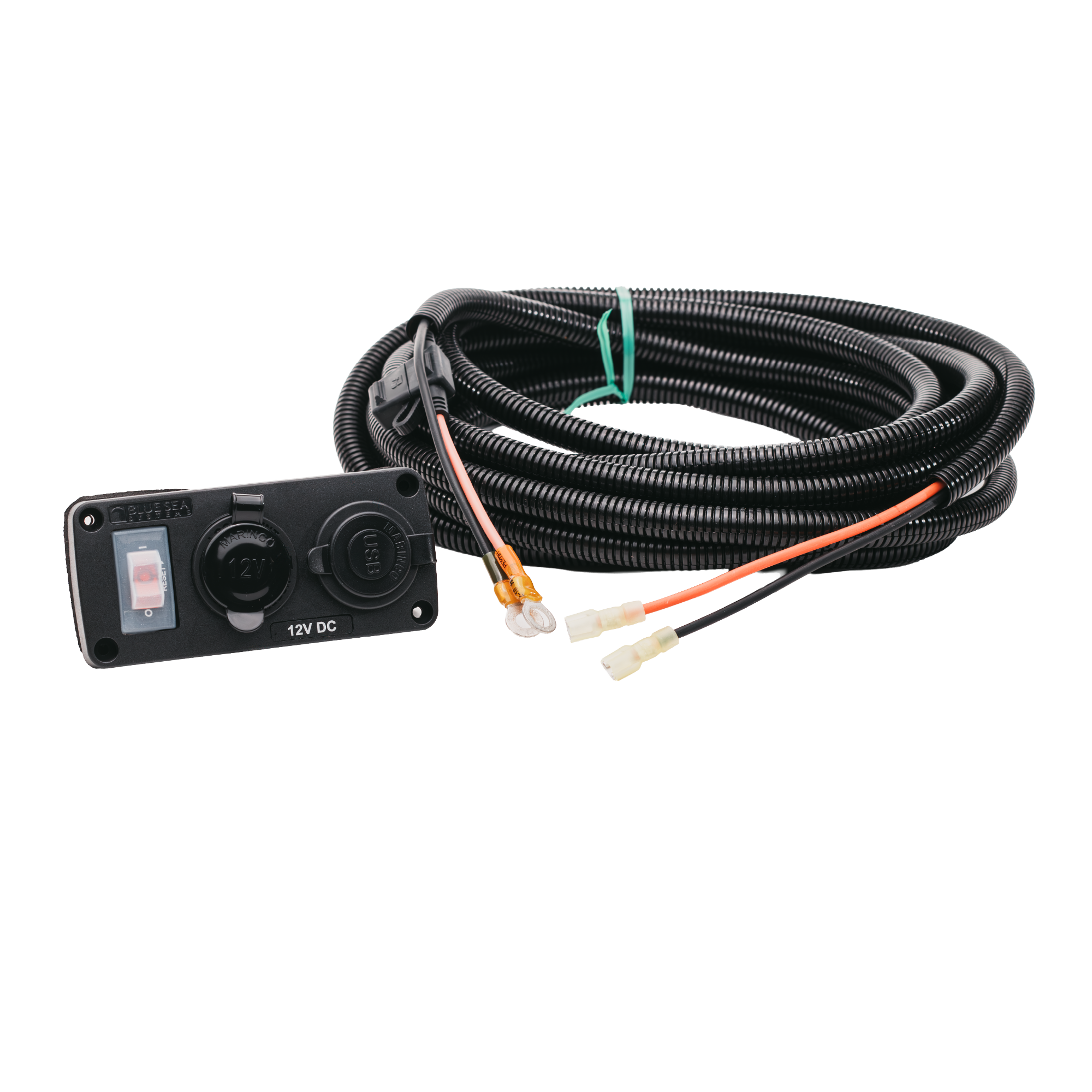

IN THE BOX

Accessory Panel

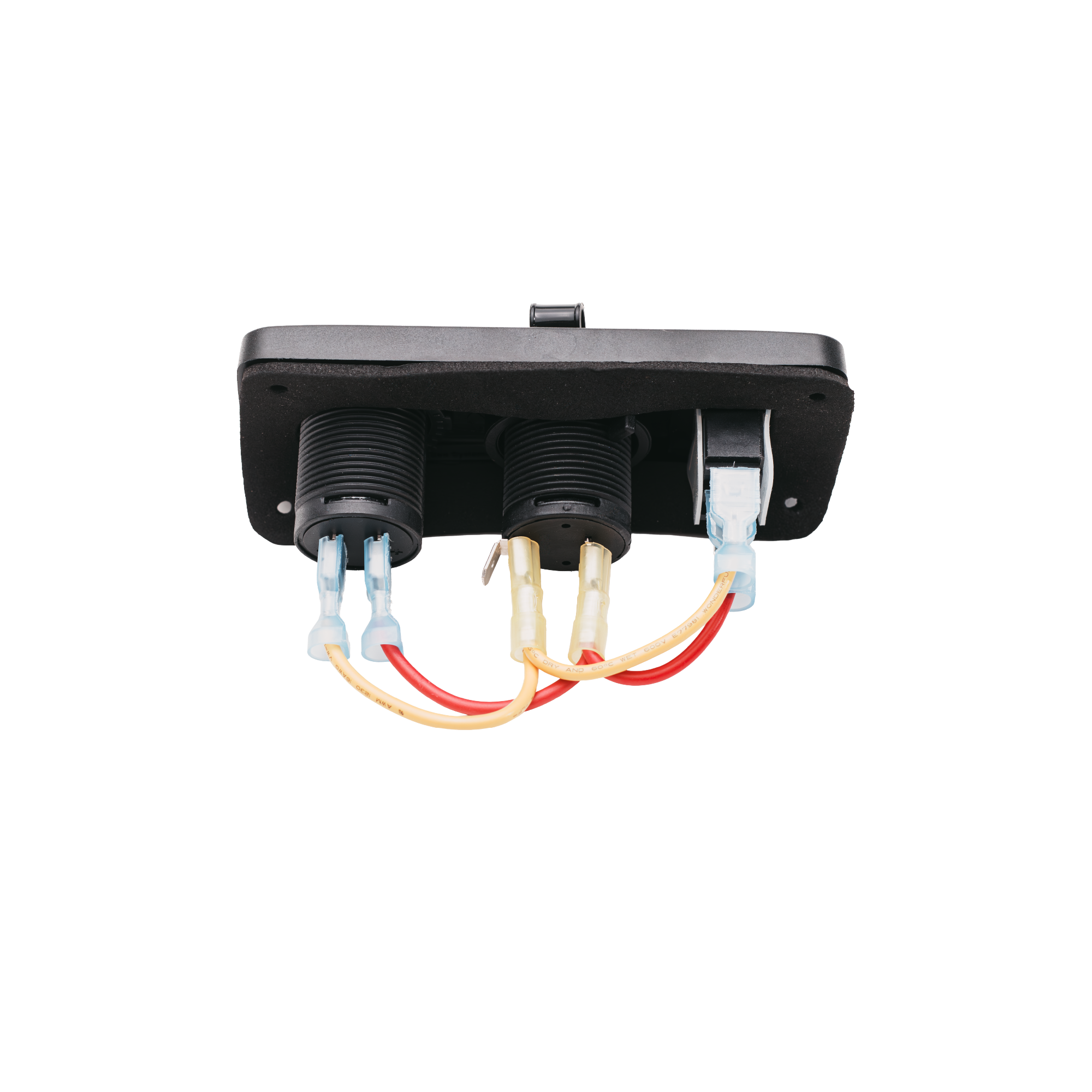

Pre-wired with the outlets installed.

20 Foot Cable

12-gauge wire harness with in-line fuse, high quality heat shrink connectors, covered in split loom for protection.

Product Specification

USB A/C

Output Voltage Using Only One Port: USB-A - 5V 3A / 9V 2A / 12 V 1.5A USB-C - 5V 3A / 9V 3A / 12V 3A / 15V 3A / 20V 2.2A

Output Voltage Using Both Ports: 5V 2.4A per output

12v Socket

IP Rating: IP45 (with cover closed)
Internal strain relief and cord seal
Nickel plated copper alloy internal
Max Amperage: 15A
