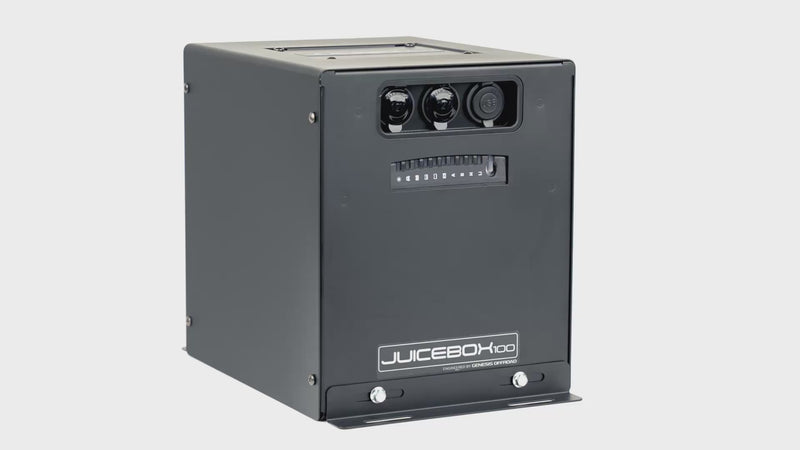

Juicebox 100
Get the elite, heavy-duty performance of a professional dual-battery system with the ultimate convenience of a self-contained, drop-in box.
The Juicebox 100 packs your secondary power source, charger, and monitoring system into one ultra-rugged, portable package. Engineered for those who operate where failure is not an option—from tactical SWAT units and remote hunters to tournament anglers and overlanders—this system delivers high-end 12V capability without requiring a permanent vehicle build.
Simply drop it in, bolt it down using the included heavy-duty mounting brackets, and link it to your cranking battery or solar panel. You instantly have a premium power station that charges while you drive, moves seamlessly between vehicles, and keeps your mission running for days.
Battery Sold Separately. Choose one of our options below, or use your own.
Group 24 Battery Required - 10.23"L x 6.60"W x 8.66"H (260mm x 169mm x 215mm)
Configure Your Juicebox With The Options Below:

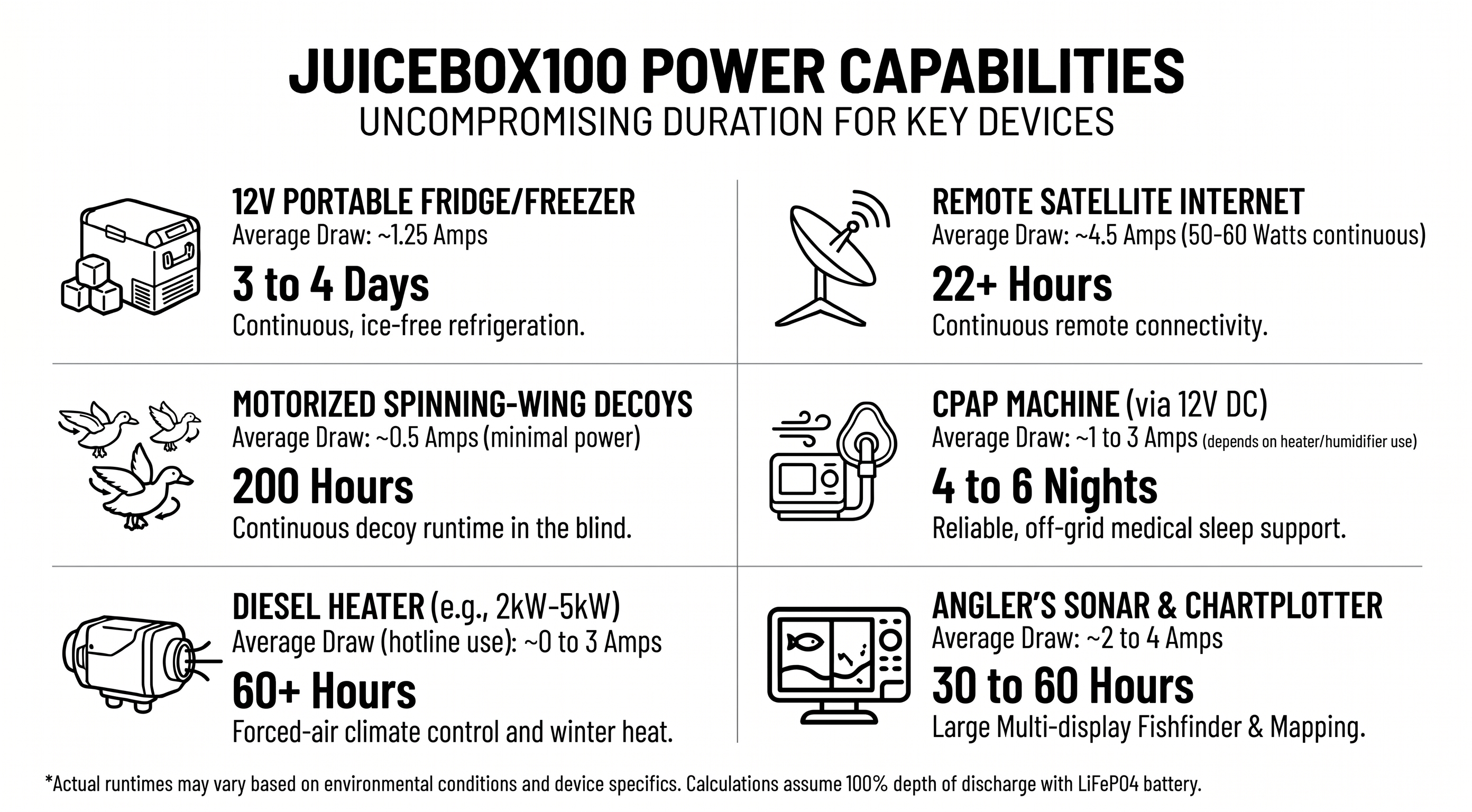

DESIGNED FOR ANY ENVIRONMENT
From the marsh and open water to backcountry trails and tactical deployments—the Juicebox 100 was engineered for wherever the grid ends.
OVERLANDERS
Run your 12V fridge/freezer deep in the backcountry for weeks without ever draining your truck’s starting battery. Keep your main starting battery completely isolated while running a fully loaded base camp. The Juicebox 100 seamlessly powers Starlink terminals, diesel heaters, GMRS base stations, and expansive camp lighting rigs. Thanks to the accessible bus bars, you can even wire in your favorite hard-wired overland accessories directly, making it the ultimate command center for your rig.
TACTICAL TEAMS
A true mission-critical asset. The Juicebox100 provides silent, emission-free power for mobile command centers, surveillance equipment, drone charging bays, and critical comms gear. Its open architecture means it can be field-serviced or modified on the fly to fit the changing demands of the theater.
ANGLERS
Lock it into your boat or utility rig using the included heavy-duty brackets. It’s the ultimate marine asset for running high-draw livewell pumps, powering large multi-display fishfinder arrays, charging trolling motor batteries, or keeping your marine cooler running all weekend without draining your main cranking battery.
HUNTERS
Bring real 12V grunt directly into the blind. Run motorized spinning-wing decoys, power ice-eaters, and keep diesel heaters blasting during freezing late-season duck hunts. It provides silent, scent-free power to recharge thermal optics, handheld radios, and GPS units at base camp without the noise of a generator.
Run your 12V fridge/freezer deep in the backcountry for weeks without ever draining your truck’s starting battery. Keep your main starting battery completely isolated while running a fully loaded base camp. The Juicebox 100 seamlessly powers Starlink terminals, diesel heaters, GMRS base stations, and expansive camp lighting rigs. Thanks to the accessible bus bars, you can even wire in your favorite hard-wired overland accessories directly, making it the ultimate command center for your rig.
A true mission-critical asset. The Juicebox100 provides silent, emission-free power for mobile command centers, surveillance equipment, drone charging bays, and critical comms gear. Its open architecture means it can be field-serviced or modified on the fly to fit the changing demands of the theater.
Lock it into your boat or utility rig using the included heavy-duty brackets. It’s the ultimate marine asset for running high-draw livewell pumps, powering large multi-display fishfinder arrays, charging trolling motor batteries, or keeping your marine cooler running all weekend without draining your main cranking battery.
Bring real 12V grunt directly into the blind. Run motorized spinning-wing decoys, power ice-eaters, and keep diesel heaters blasting during freezing late-season duck hunts. It provides silent, scent-free power to recharge thermal optics, handheld radios, and GPS units at base camp without the noise of a generator.
Product Overview
Installation Guide
Built Different. Built for YOU.
Most "power boxes" on the market are sealed, disposable plastic blocks.
If a single port fails, a fuse blows deep inside, or you want to upgrade a component, you have to throw the whole thing away.
Not the Juicebox 100. We believe in gear that lasts a lifetime.
Best in class components. Serviceable. Upgradable. Built for YOU.

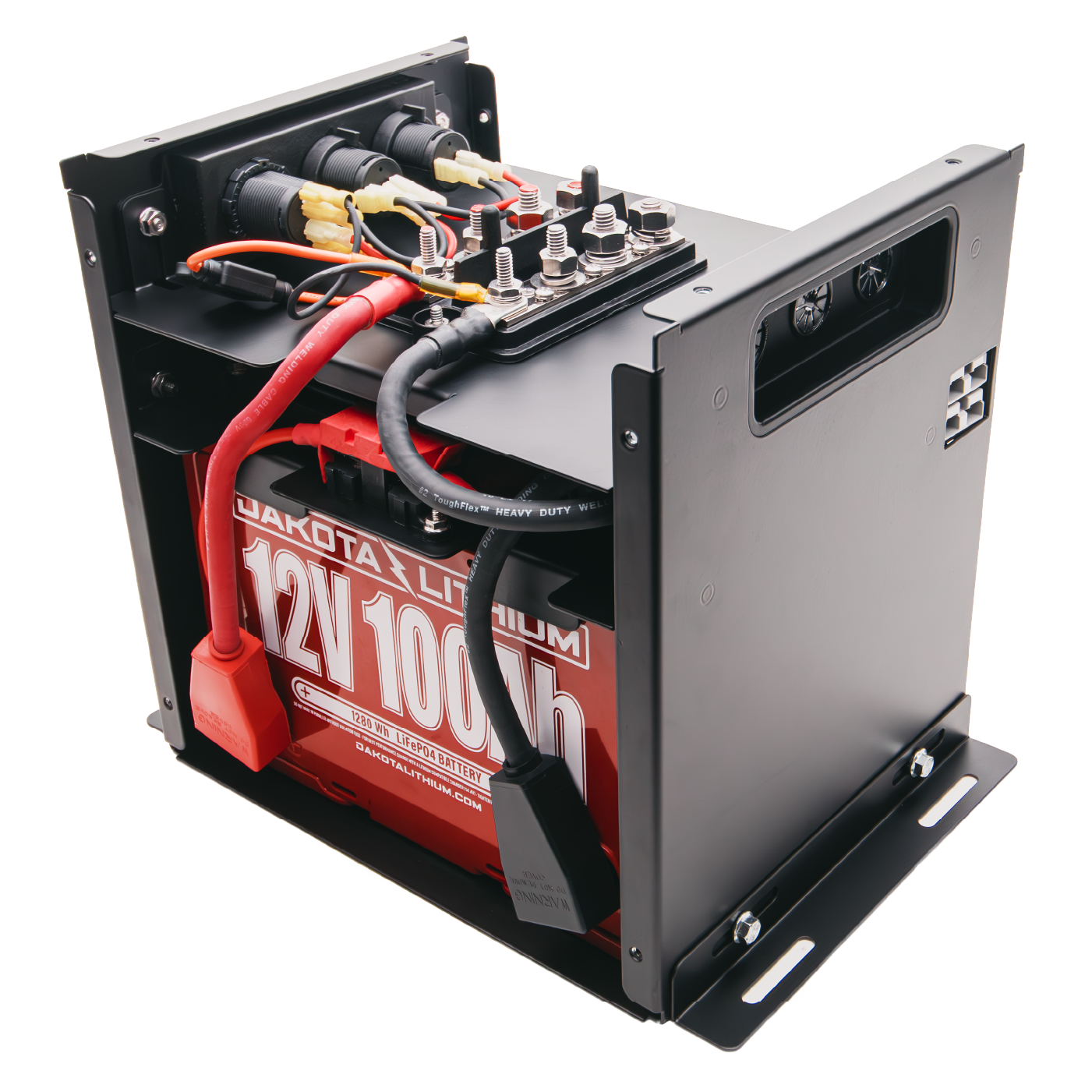

Take a look inside the Juicebox 100:

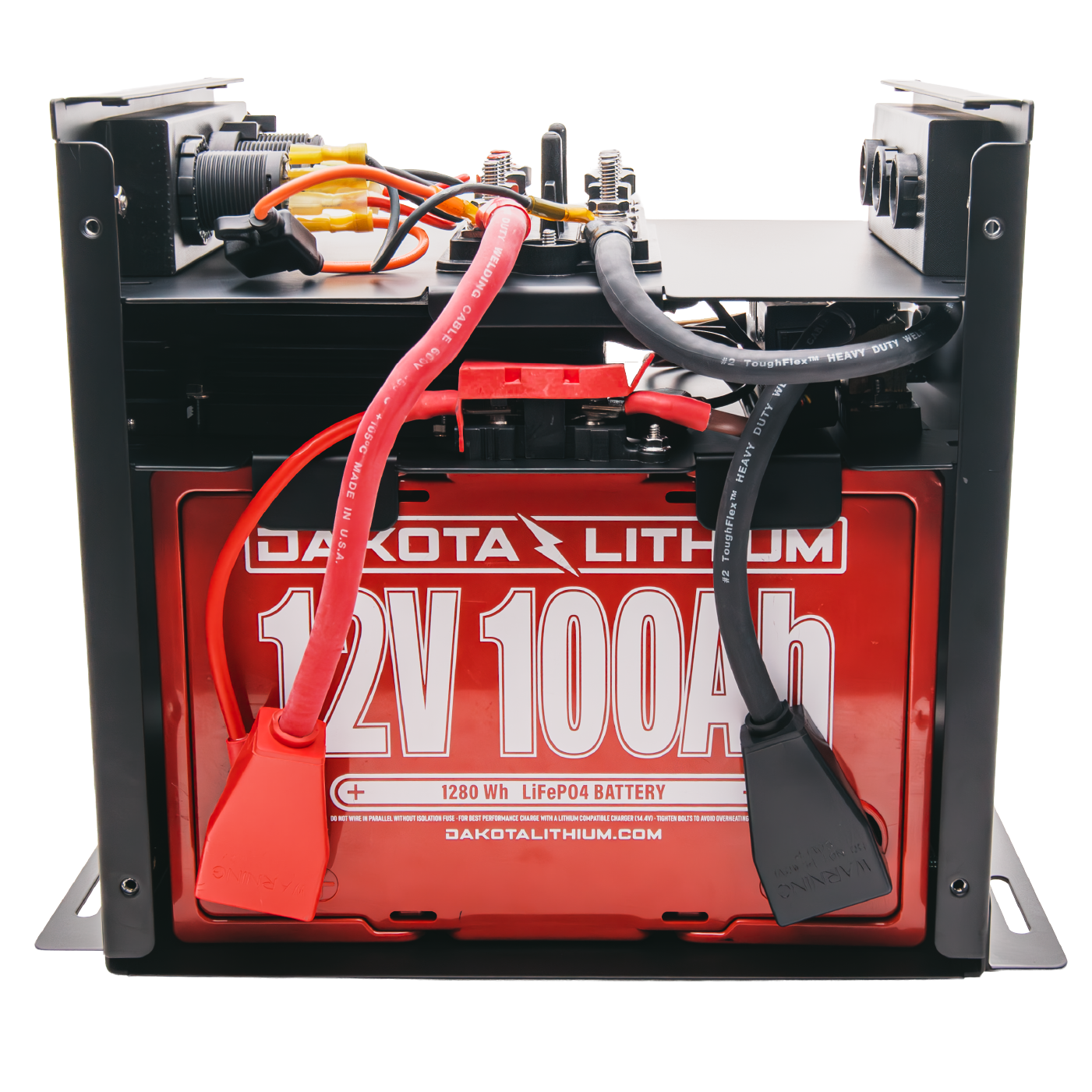

Lithium Battery
The beating heart of the system. Choose Dakota Lithium or Ohmmu Battery for stable LiFePO4 power with double the runtime of traditional AGM setups and a fraction of the weight.
Built for 5,000+ cycles at 80% discharge.
100Ah (1280 Watt-hours)
Dakota Lithium: 11 Year Warranty
Ohmmu Battery: 4/10 Year Warranty

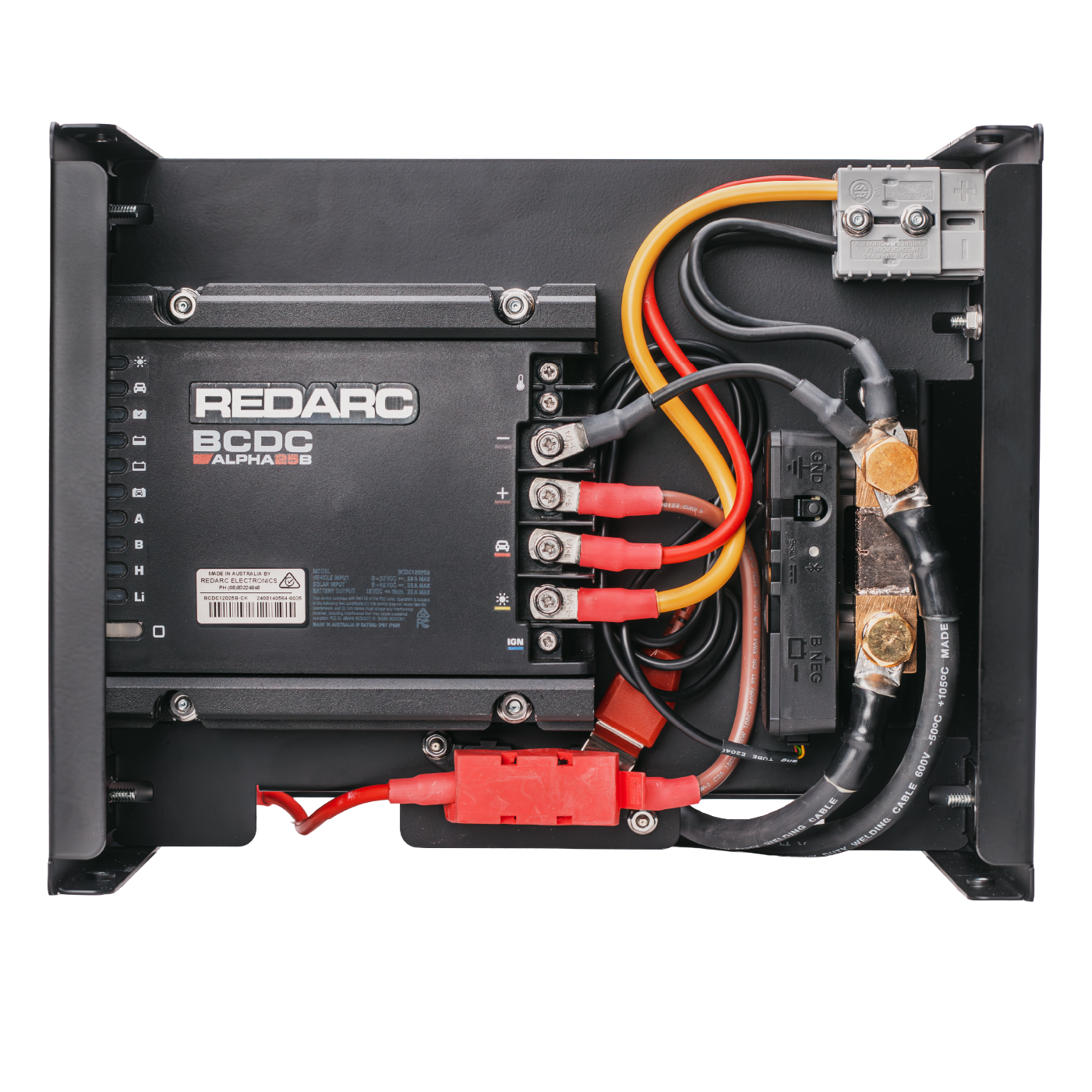

REDARC Alpha25 BCDC Charger
The industry standard in DC-to-DC charging.
Charges at 25A while you drive, features built-in Green Power Priority™ MPPT solar regulation, and can even charge up your vehicle's dead starting battery via REDARC's Redvision app.
Redvision App
Remote monitoring and control from the RedVision app with Bluetooth
Connect to the Alpha charger to configure settings and monitor charge current, battery voltage & temperature, the vehicle's input voltage, and the performance of your solar panel if equipped.
If you add the optional Smart Battery Monitor from the options above, then you can also monitor state of charge, charge remaining and current flow.
Spend more time exploring and less time worrying about your batteries.

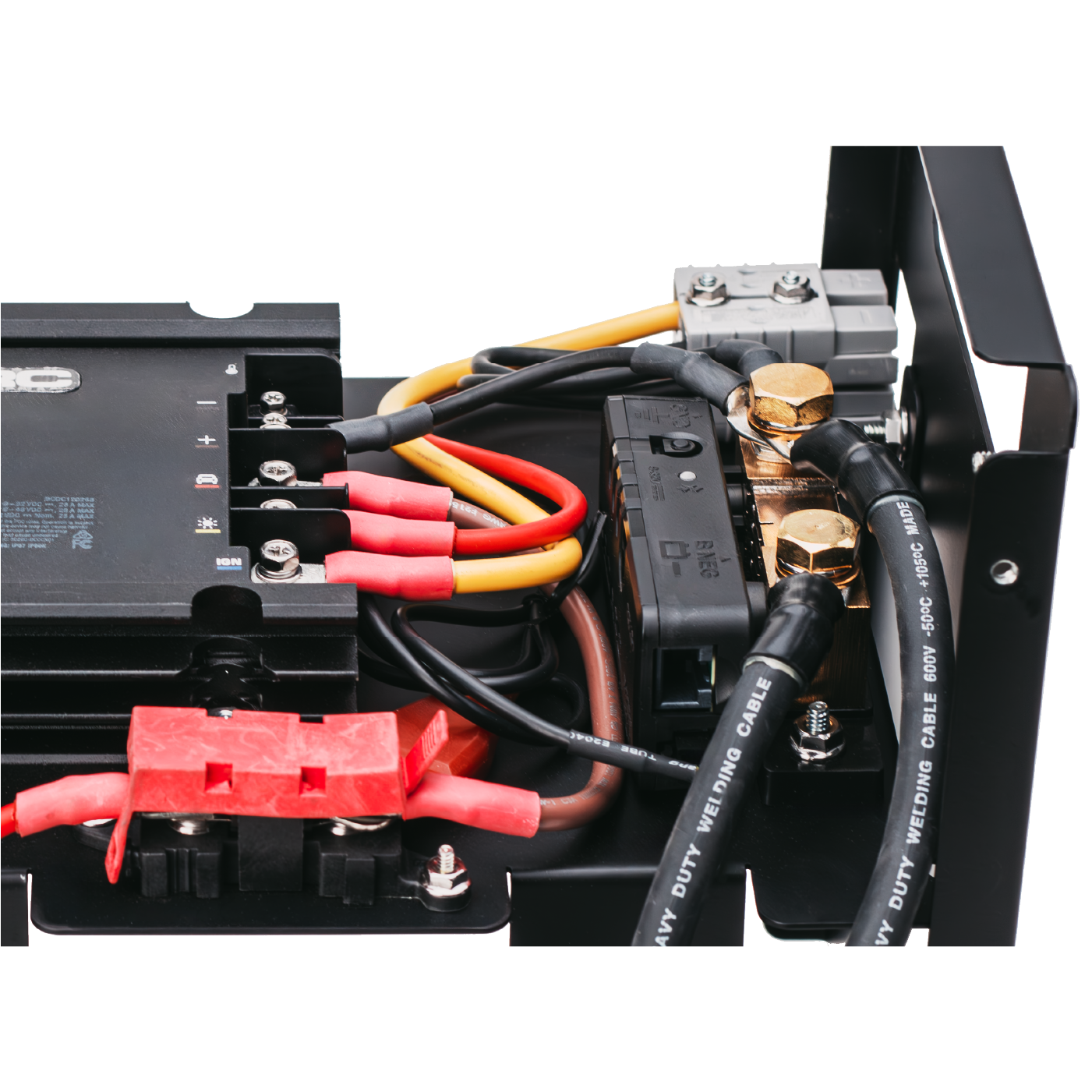

Bus Bars
Hard wire your electrical accessories.
Route your wires through the cable entry grommets and connect to the power & ground bus bars.
Anything you connect here will run from the lithium battery and will not drain down your cranking battery.
Accepts multiple sizes of ring terminals or cable lugs.

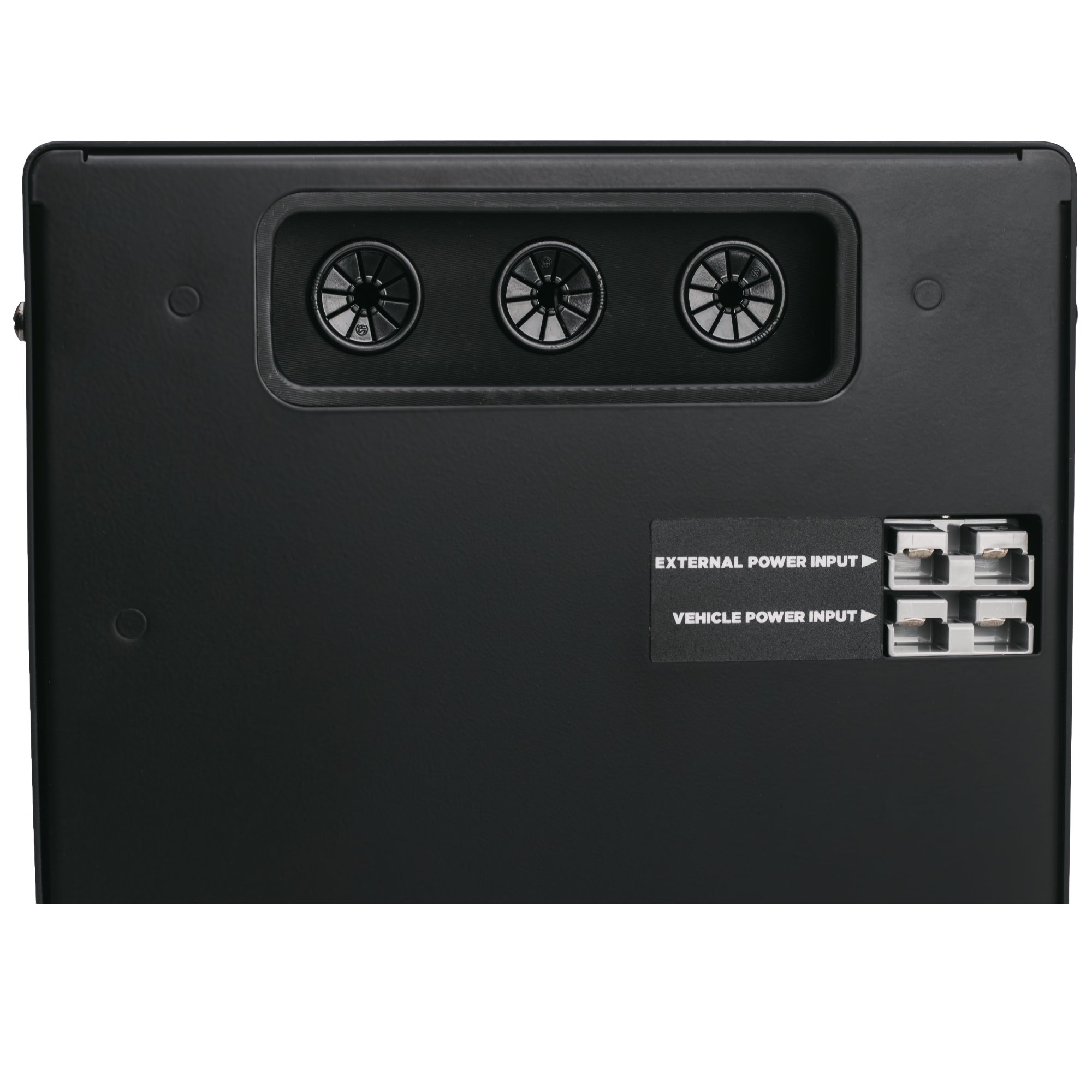

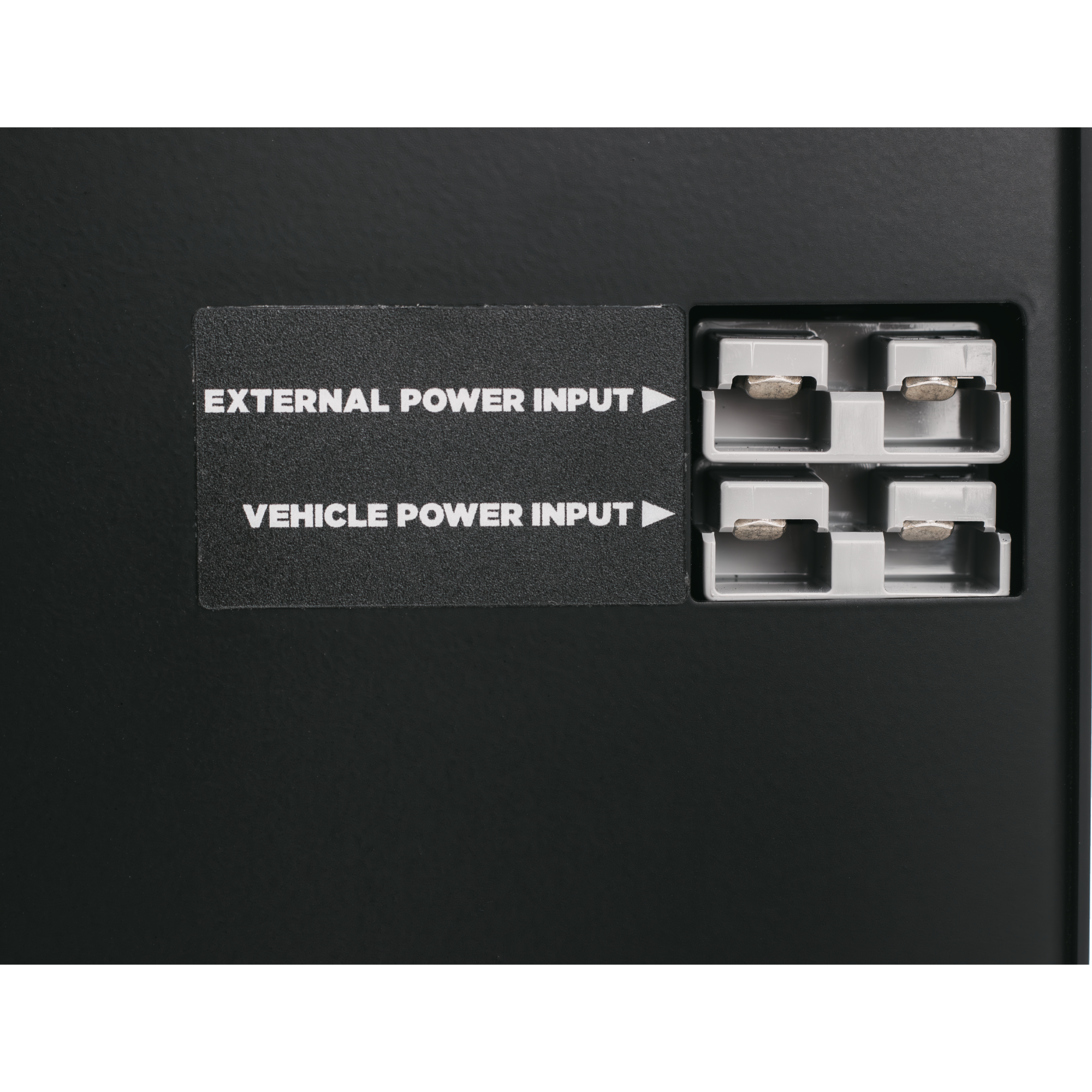

Dedicated Solar Port
Plug portable or roof-mounted solar panels directly into the built-in Anderson port. With REDARC’s Green Power Priority™, the system automatically prioritizes free solar energy to lighten the load on your alternator.
Connect the included power harness to the Vehicle Power Input port, and route it to your cranking battery. That's it! Wiring is done!

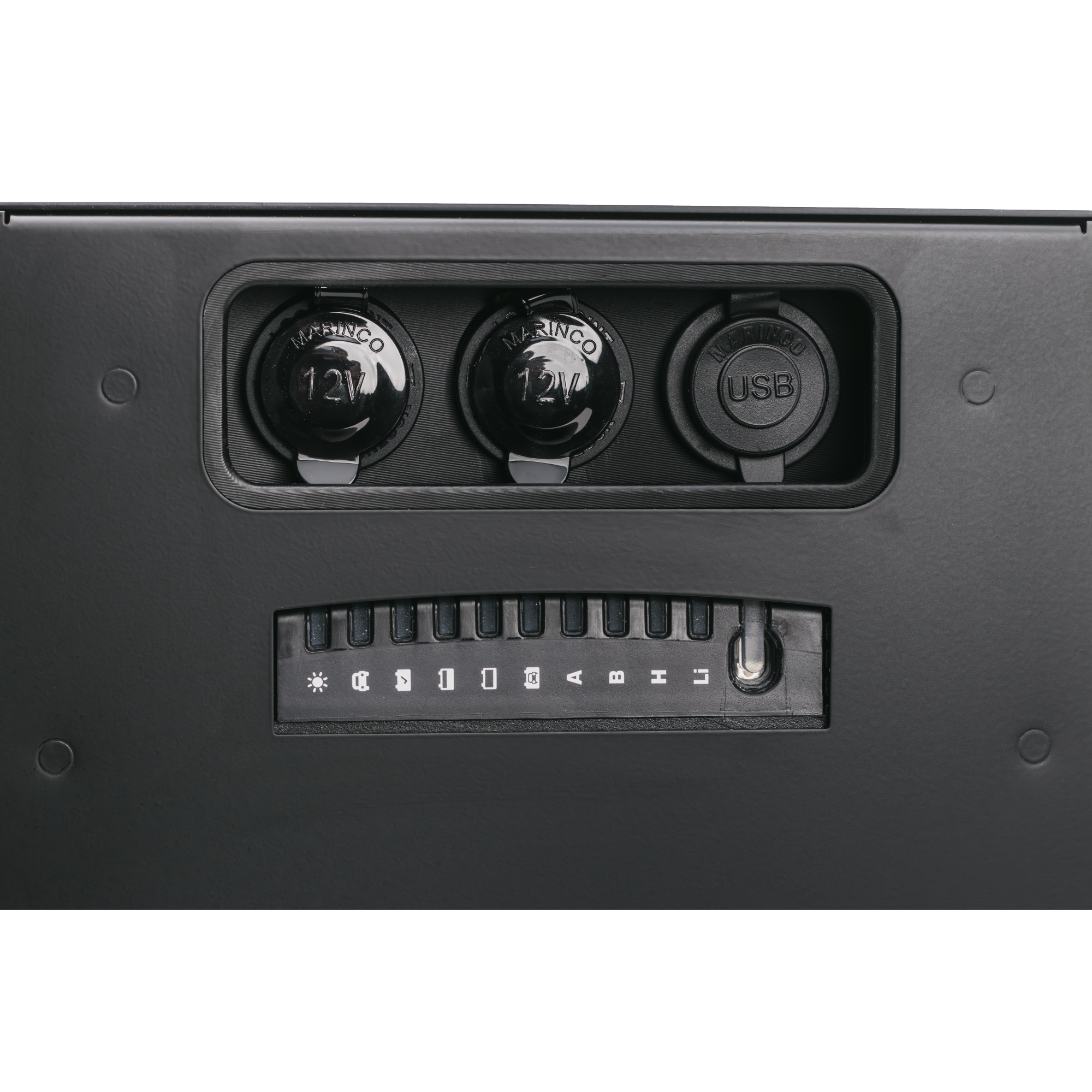

12V and USB
2x Marine-Grade 12V Outlets:
- Heavy-duty, always-on power perfect for 12V portable fridges, diesel heaters, or other field equipment.
1x Dual Fast-Charging USB-C Socket:
- Features two USB-C ports to keep phones, tablets, thermal optics, and laptops topped up.
How It Works
While you drive, the REDARC Alpha25 charger gets its power from your alternator to rapidly charge the installed battery.
Once you shut off the engine, the charger turns off, and all your accessories like lights, comms, diesel heaters, or decoys that are wired into the Juicebox run from the lithium battery. Those devices will not drain your vehicle's cranking battery.
If you have a solar panel connected, it will charge the lithium battery.
Expand each section for more tech specs ->
- REDARC BCDC Alpha® (BCDC12025B) — 25A max charge output
- Vehicle input: 9–32V — works with 12V and 24V systems, standard and smart/variable-voltage alternators (auto-detect)
- Built-in MPPT solar regulator with Green Power Priority™ — 9–48V solar input, up to 500W of unregulated panels
- Multi-stage charging: Boost → Absorption → Float
- Start Battery Recovery: sends 25A back to a dead cranking battery (~15 min cycle) to help start your vehicle without jumper cables
- IP67/IP69K rated
- −40°F to 185°F operating range
- Bluetooth monitoring via free REDARC RedVision apps
If using a lithium battery without internal bluetooth monitoring, such as the Dakota Lithium battery, you can add the Redarc Smart Monitor to keep an eye on the battery's state of charge. Since the Ohmmu Battery does utilize an internal Bluetooth monitoring capability, this Shunt is not necessary.
- REDARC Smart Battery Monitor (BSEN500) — pinpoint accuracy for your power monitoring
- Current measurement: up to ±500A with ±0.3% accuracy
- Voltage measurement accuracy: ±0.7%
- Battery temperature monitoring from −40°F to 212°F
- RedVision® app shows state of charge, live current draw, voltage & time-till-full/flat — know exactly how long your gear will run before you head out
- Bluetooth® connection straight to your smartphone — no extra display to buy or mount
- Near-zero parasitic draw: ~3mA standby, so it won't drain the battery it's watching
- Operating voltage 9–32V DC
100Ah (1,280 Watt Hours) Heated LiFePO4 Battery
The beating heart of the system. Safe, stable LiFePO4 chemistry with double the usable runtime of traditional AGM setups at a fraction of the weight — and self-heating cells that let it charge in the coldest deer stands and ice-fishing mornings.
- 12V / 100Ah / 1,280 watt-hours
- Heated cells charge safely down to −13°F
- Built for 5,000 cycles at 80% discharge
- Flat voltage curve — full power to the last drop
- Industry-leading 11-year warranty
100Ah (1,280 Watt Hours) Heated LiFePO4 Battery
Safe, stable LiFePO4 chemistry with double the usable runtime of traditional AGM setups at a fraction of the weight — and self-heating cells that let it charge in the coldest deer stands and ice-fishing mornings.
- 12V / 100Ah / 1,280 watt-hours
- Heated cells charge safely down to −13°F
- With a 10 year warranty and a 6,000 cycle lifespan at 80% depth of discharge, this will power everything for years to come.
- Flat voltage curve — full power to the last drop
- 4- year full replacement, 10-year limited warranty
This is what separates a real dual battery system from a glorified phone charger. Route your wires through the cable entry grommets and land them on the power and ground bus bars — lights, comms, fridges, sPOD systems, anything.
The Positive and Negative bus bars have 3 different size studs - - 3/8", 5/16", and 1/4" diameter for heavy cables for a winch, air compressor, fuse box, etc, and three #10 screws for attaching smaller ring terminals for your low amp accessories such as small LED lights.
Everything wired here runs from the lithium battery — and will not drain your cranking battery

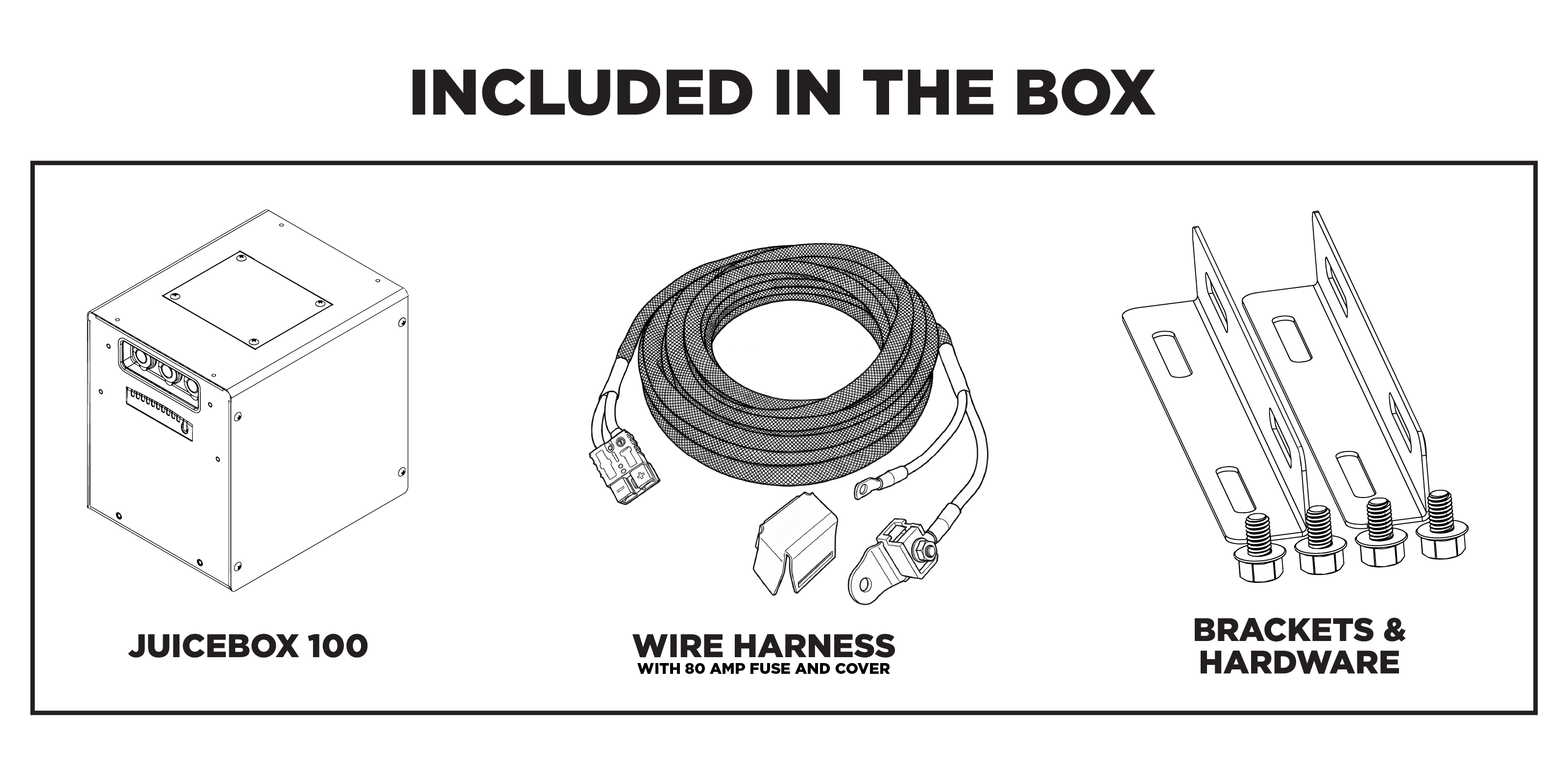

- Select a 5', 12', or 20' long power harness made from flexible 8 AWG fine-strand heavy duty welding cable — highly flexible and easy to route
- Anderson quick-connect at the Juicebox end: tool-free connect/disconnect, move the system between vehicles in seconds
- Pre-installed 80A ZCase® fuse and holder at the battery end — sized to maintain full protection even when under-hood heat derates fuse capacity
- Pre-terminated lugs — no cutting, no crimping, no guesswork
- Order an extra Power Harness for each vehicle that needs to use the Juicebox to be ready to go at a moment's notice.
- About 30-60 minutes with basic hand tools (drill, sockets, wrench)
1 - Drop In the Battery
Your Dakota Lithium battery arrives in its own box. Remove the Juicebox lid, set the battery in, connect the two terminals, done. Our quick setup video walks you through it.
2 - Mount It

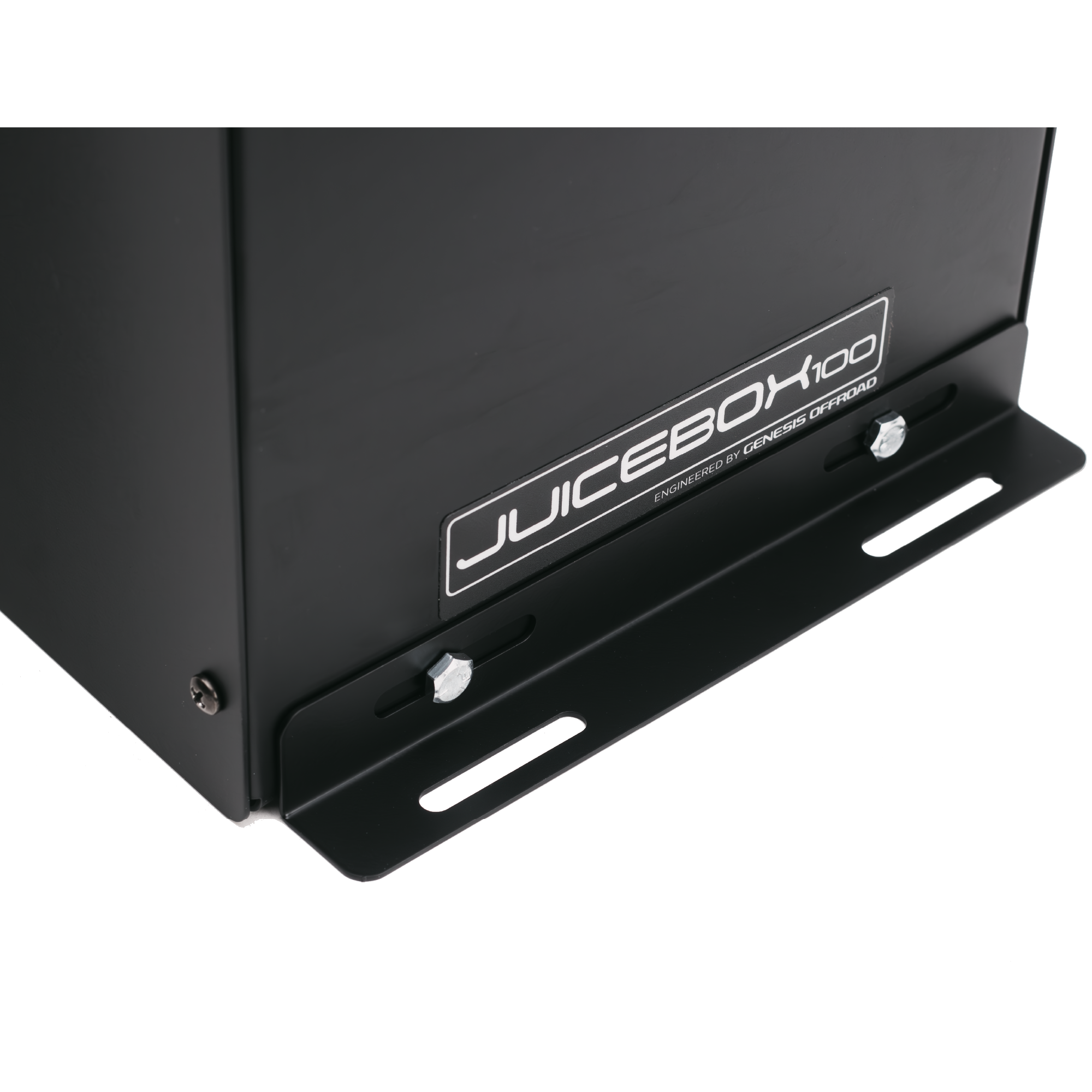

Bolt the included heavy-duty steel brackets to any solid surface using the slotted mounting feet. Cargo area, truck bed, boat compartment — your call.
3 - Run the Cable
Route the included 20' harness to your cranking battery and connect the two pre-terminated lugs. The 80A ZCase fuse is already installed. Plug the Anderson connector into the Juicebox — wiring done.
Inspiration

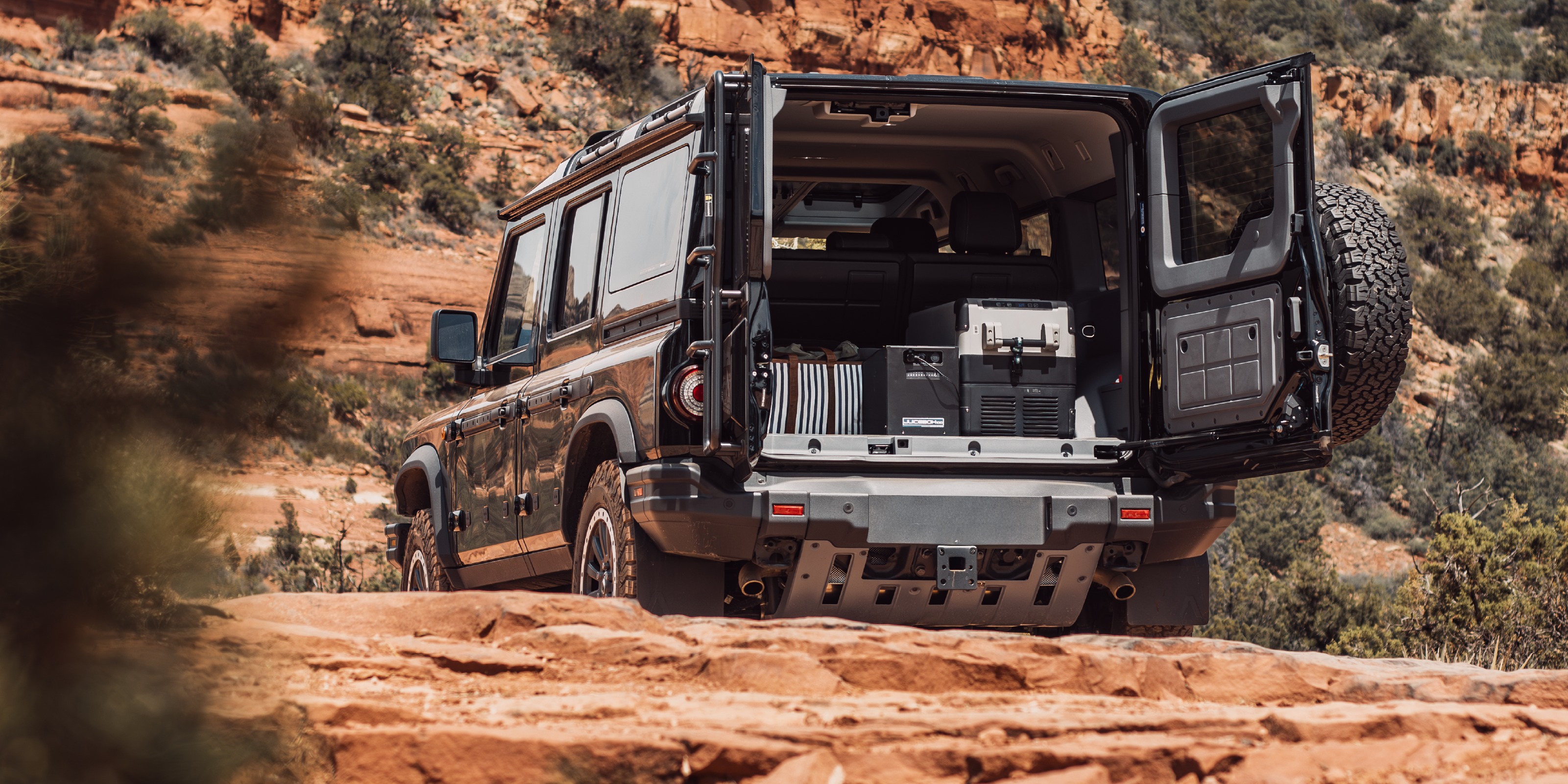

Scroll through the slideshow to see some examples of the Juicebox 100 in action.
We'd love to see how you use the Juicebox! Send pictures to info@genesisoffroad.com for a chance to be featured on our website!

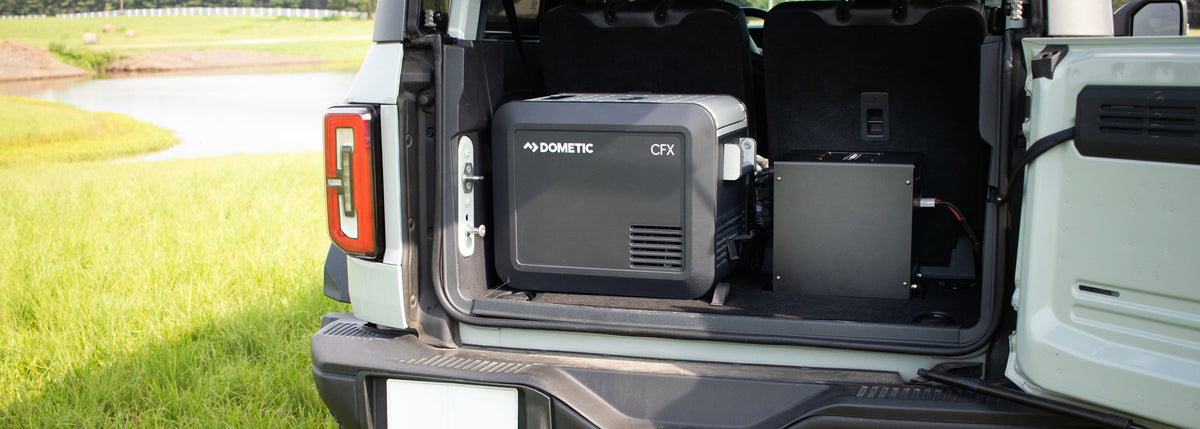

Behind the back seats in a

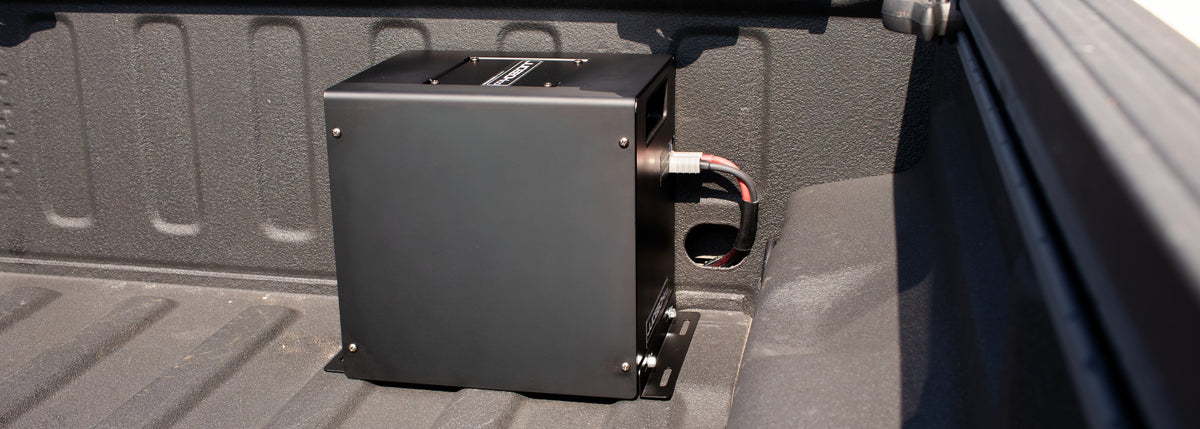

In the bed of a

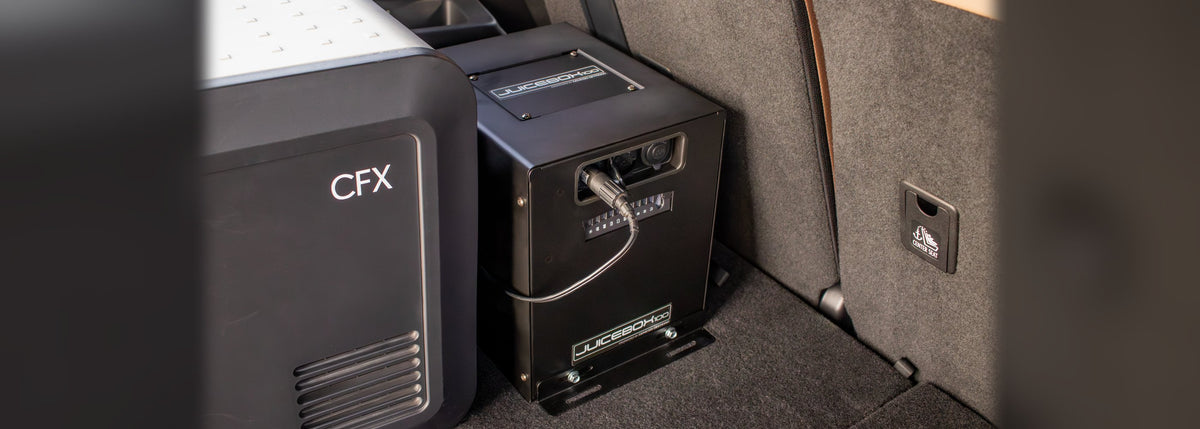

Rear cargo area in an

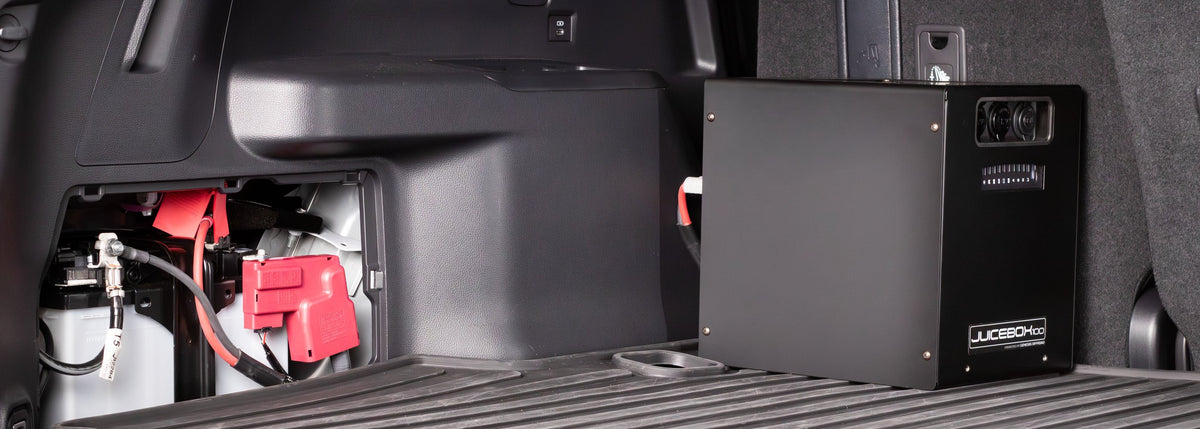

Rear cargo area, close to the cranking battery in a

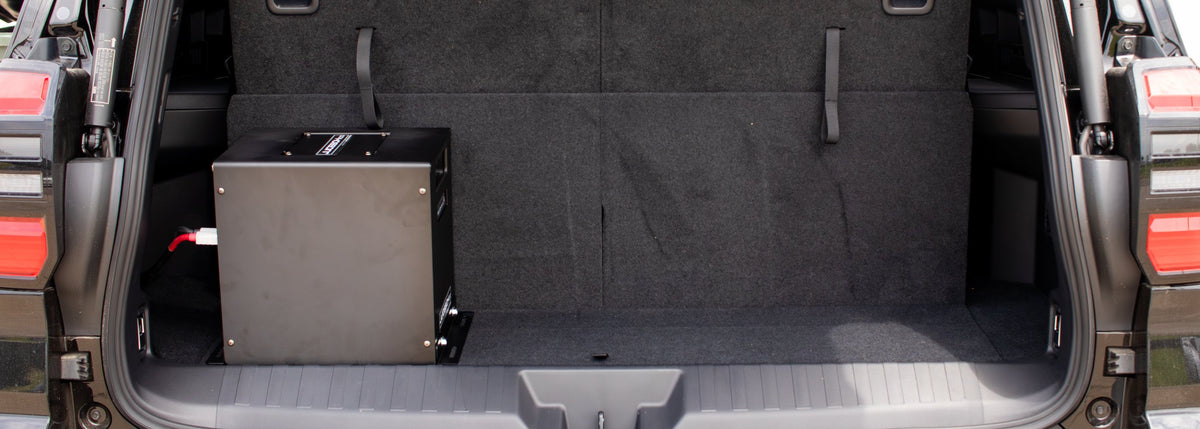

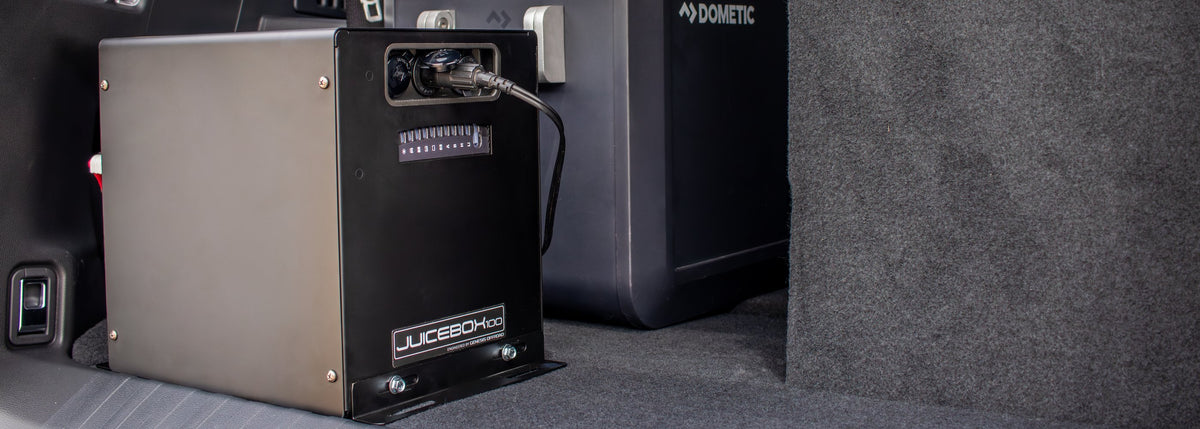

Behind the 3rd Row Seats in a

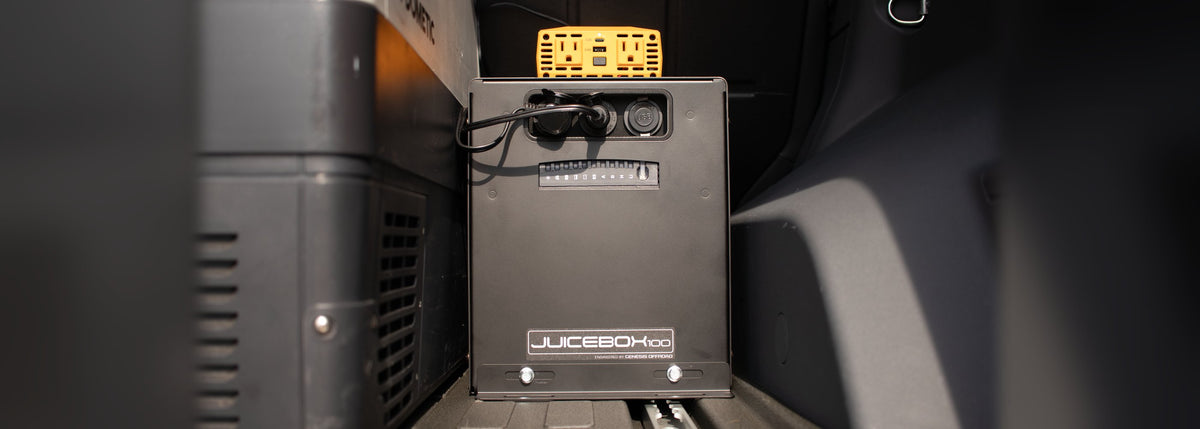

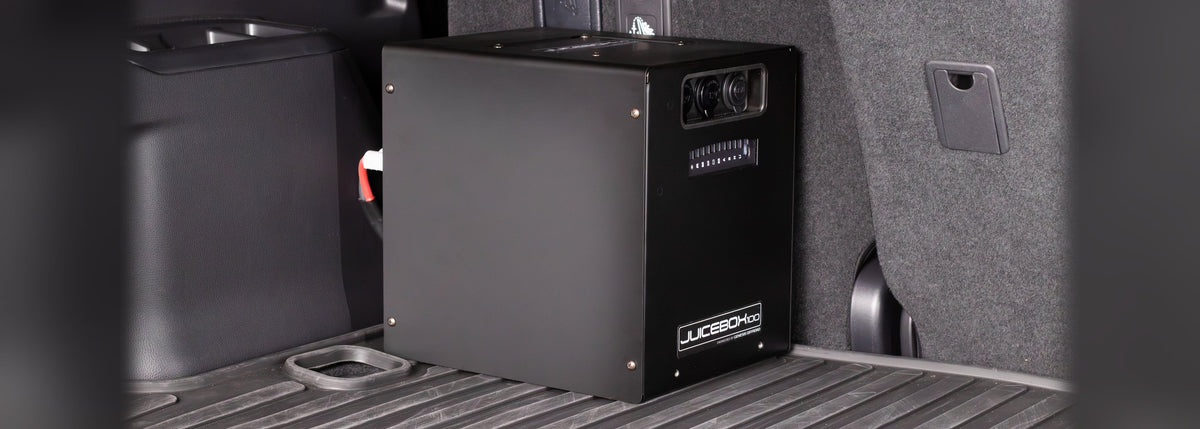

Rear cargo area in a
Behind the back seats in a

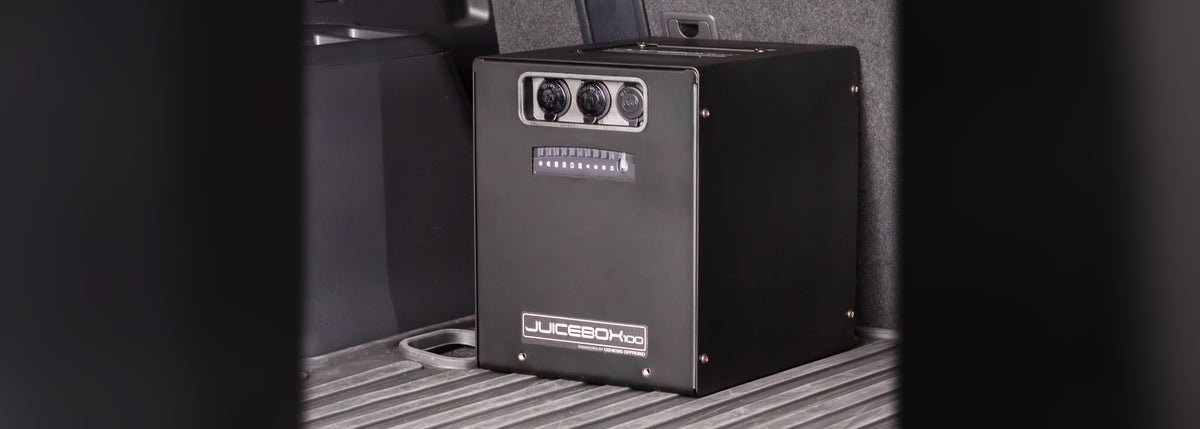

Power outlets facing rearward in a
Half of the 3rd row seats folded down in a

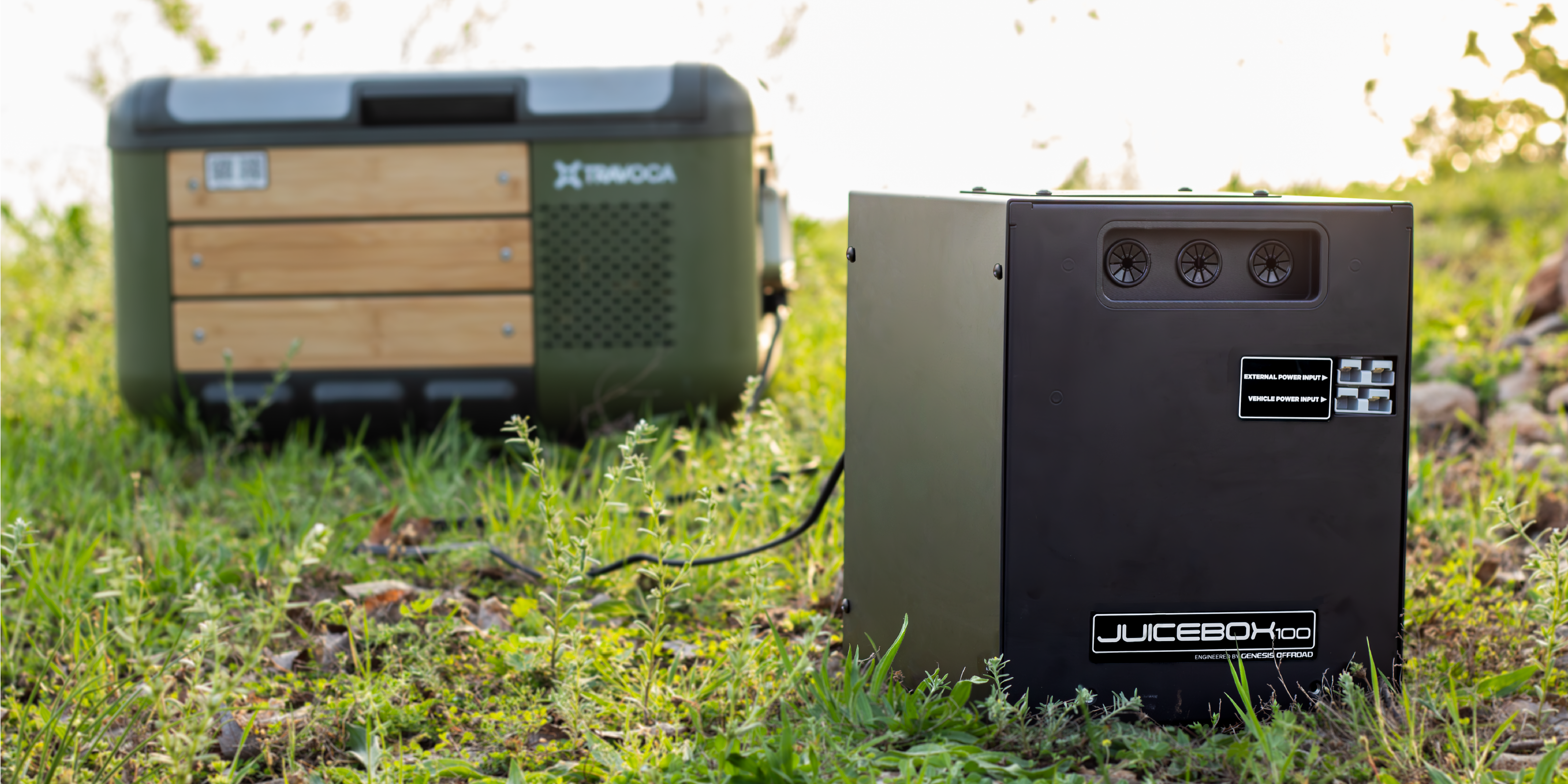

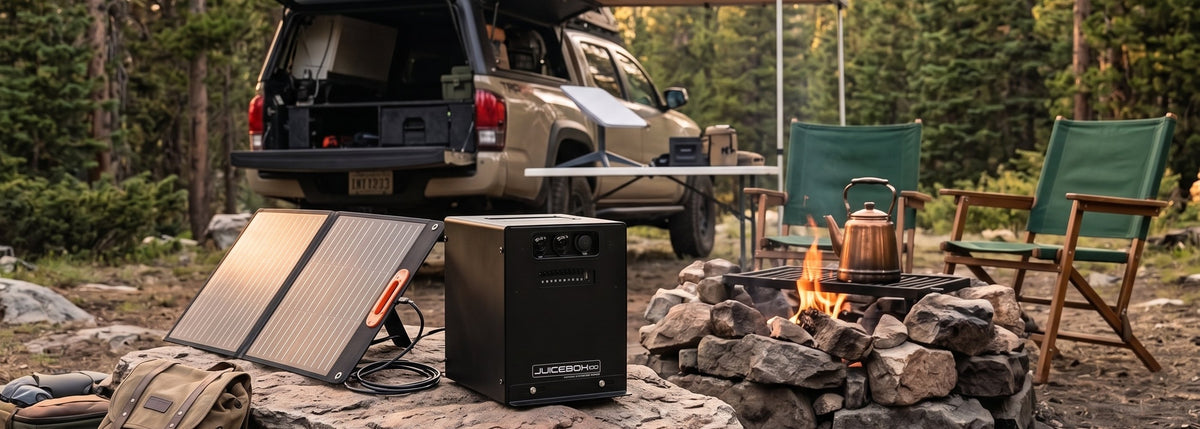

Use it as a portable power station at your
FAQs
Why does the battery ship in a separate box?
Lithium batteries are required to ship in UPS hazmat-certified packaging. Both battery manufacturer's packaging is certified, so the battery ships directly in its own box and arrives alongside your Juicebox. Dropping it in takes just a few minutes — watch our quick setup video to see exactly how.
Our products ship from our office in Olive Branch, MS, just outside of Memphis, TN. We work hard to keep everything in stock for same day shipping on most orders placed by 3pm Central time. Click here to see a map showing transit times by UPS Ground for the USA. You may select Expedited Shipping services on the checkout page if faster delivery is needed. Tracking information will be provided when we create your shipping label.
What do I need to do before my first trip?
Three things:
(1) Fully charge the battery — it doesn't ship at 100%. Drive the vehicle, connect solar, or use a 12V lithium charger until the charger says it's full.
(2) Pair the free RedVision® app to the charger and Smart Shunt over Bluetooth — watch our step-by-step video on our YouTube channel.
(3) With the battery full, calibrate the Smart Shunt in the app so your state-of-charge readings start out accurate.
Will it fit my vehicle?
If you have roughly 14" × 10" of flat floor space and 12" of height, yes. The enclosure is 11.55" L × 9.42" W × 11.36" H (13.75" long across the mounting brackets) and weighs 42 lbs with the battery installed.
Common spots: SUV cargo area, pickup bed (with or without a topper), under a boat seat, van garage, or trailer compartment.
Be sure to send us a picture, we'd love to see how you're using the Juicebox!
Why is the harness fused at 80 amps?
ZCase® fuses derate as temperature rises — under-hood heat can pull a fuse's effective capacity to under 50A. The 80A rating ensures the fuse still protects the circuit properly at real-world engine bay temperatures without nuisance-blowing during normal 25A charging. It's sized by engineering, not guesswork.
Learn more about the ZCase fuse here.
How can I hook up solar panels?
The Redarc Alpha charger has an integrated MPPT solar charger controller built in. No additional charge controller device is required. The Juicebox 100 includes a 50 amp Anderson plug for connecting directly to up to 500W of solar panels. If your brand of solar panels come with a different connector such as MC4 connectors, you will need an adapter to plug them into the Anderson plug.
Important: use unregulated panels only — panels with built-in charge controllers will conflict with the Alpha25's MPPT regulator. With Green Power Priority™, the system automatically uses free solar energy first and your alternator second.
What happens if I leave my headlights/radio/dome lights turned on, and kill my cranking battery?
This is where the Juicebox 100 shines. Open the RedVision® app and trigger Start Battery Recovery — the Alpha25 sends 25A from the lithium battery back to your cranking battery for about 15 minutes, enough to safely start the vehicle. No jumper cables, no waiting for another vehicle.
Can I connect an sPOD or other accessory fuse box system?
Absolutely — that's what the bus bars are for. Route your wires through the cable entry grommets and land them on the power and ground bus bars.
This way, anything that you are controlling through the sPOD or other fuse box will get power from the lithium battery, and will not drain down your cranking battery.
What's the warranty?
Each component carries the strongest warranty its manufacturer offers: 11 years on the Dakota Lithium battery, 4/10 years on the Ohmmu battery, 2 years on the REDARC Alpha25 charger and Smart Shunt, and 3 years from Genesis Offroad on everything else — enclosure, bus bars, outlets, harness, and hardware.
For more info, please visit our Warranty Info page.
Can you ship the Juicebox 100 overseas?
Because lithium batteries (LiFePO4) are classified as hazardous materials (HAZMAT), international shipping rules vary wildly by country. You cannot simply check out normally for most overseas locations.
Please email us at info@genesisoffroad.com with your shipping address to get a custom shipping quote and to verify if Dakota Lithium can legally ship to your specific country. Expect the shipping rates to be quite high for the battery due to HAZMAT air freight protections. There will be a second shipping charge for the Juicebox itself. You will also be responsible for any international customs fees, duties, or GST upon arrival.
Once approved, then we can process your order manually.
