Heavy-Wall Severe Duty 2 Gauge Cable Lug Kit

SKU: WS-20-5
In stock
Sale price$16.98

Fusion copper lugs provide a consistent and quality connection. They are designed to be ready to use with pre-measured and correctly metered flux and solder within a tin-plated copper connector. Simply clamp the connector into a vise, strip the cable to expose 7/8" of wire, heat the connector, insert the wire, and cool to solidify. This setup makes the fusion lugs superiorly strong and reliable and makes them ideal for use in destructive vibration or corrosive environments, along with a heavy-wall construction for even more strength and durability. Fusion copper lugs provide less confusion, faster application, and make for an overall less costly install or repair process.

Made with tin-plated, cast copper alloy.
Added conductivity strength and corrosion resistance.
Superior reliability for years of dependable service.
Up to 70% stronger than the standard crimp method.

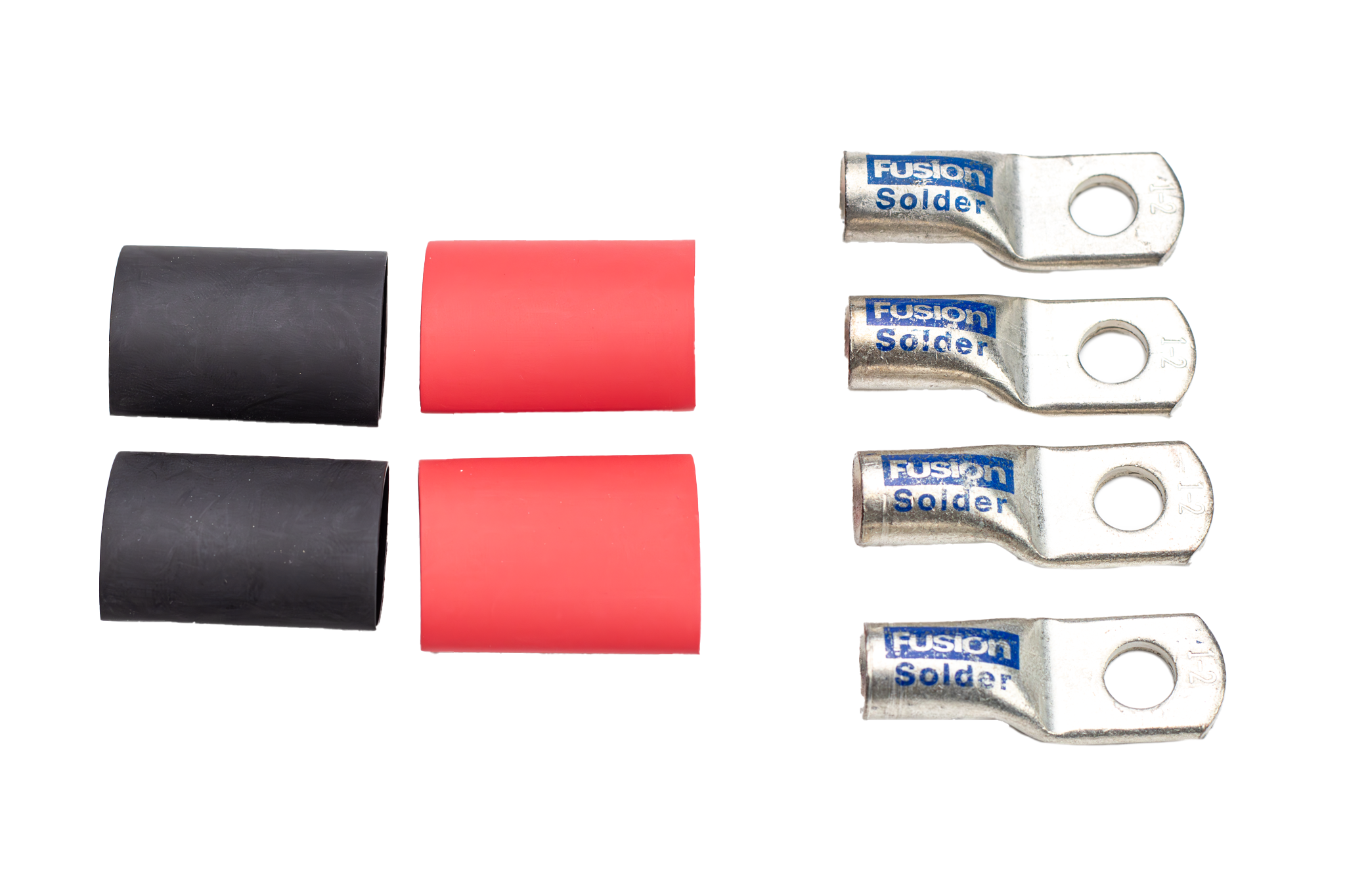

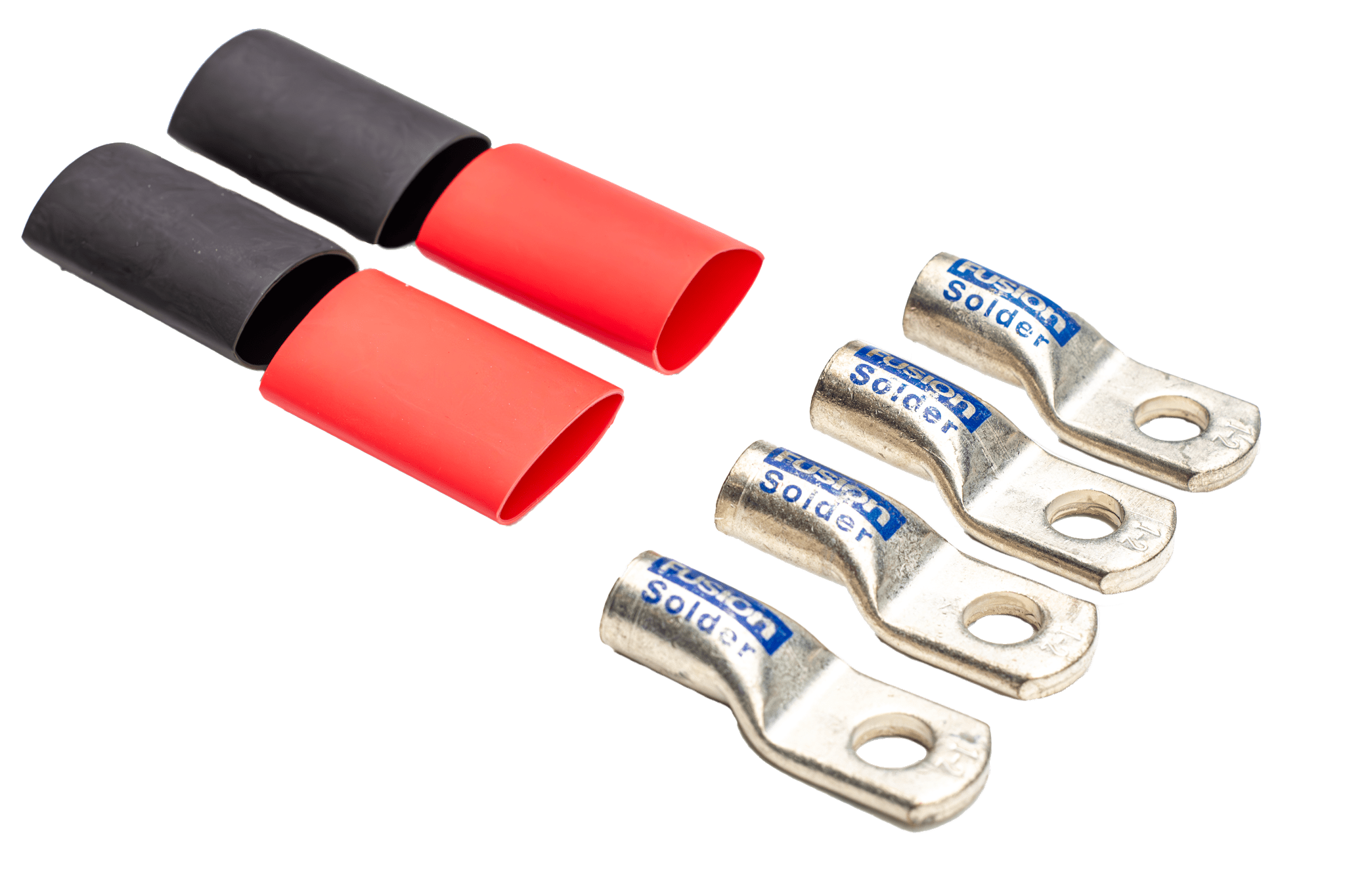

KIT INCLUDES

4X FUSION CABLE LUGS

2X RED 3M HEAT SHRINK

2X BLACK 3M HEAT SHRINK

Product Specification

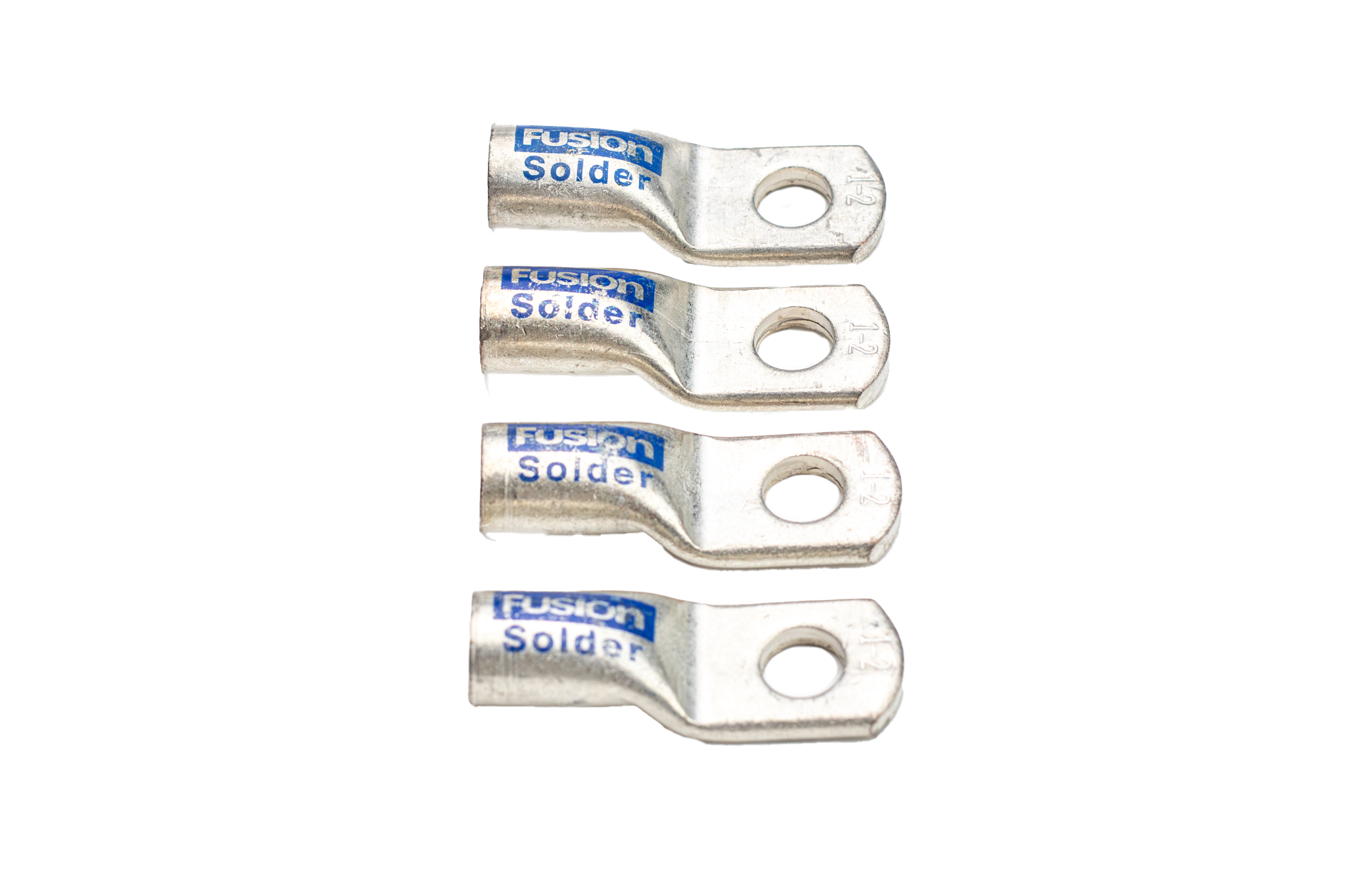

Lugs

Solder & Flux Preloaded in Barrel
Wire Gauge: 2ga
Hole Size: 5/16"
Material: Tin Plated Copper

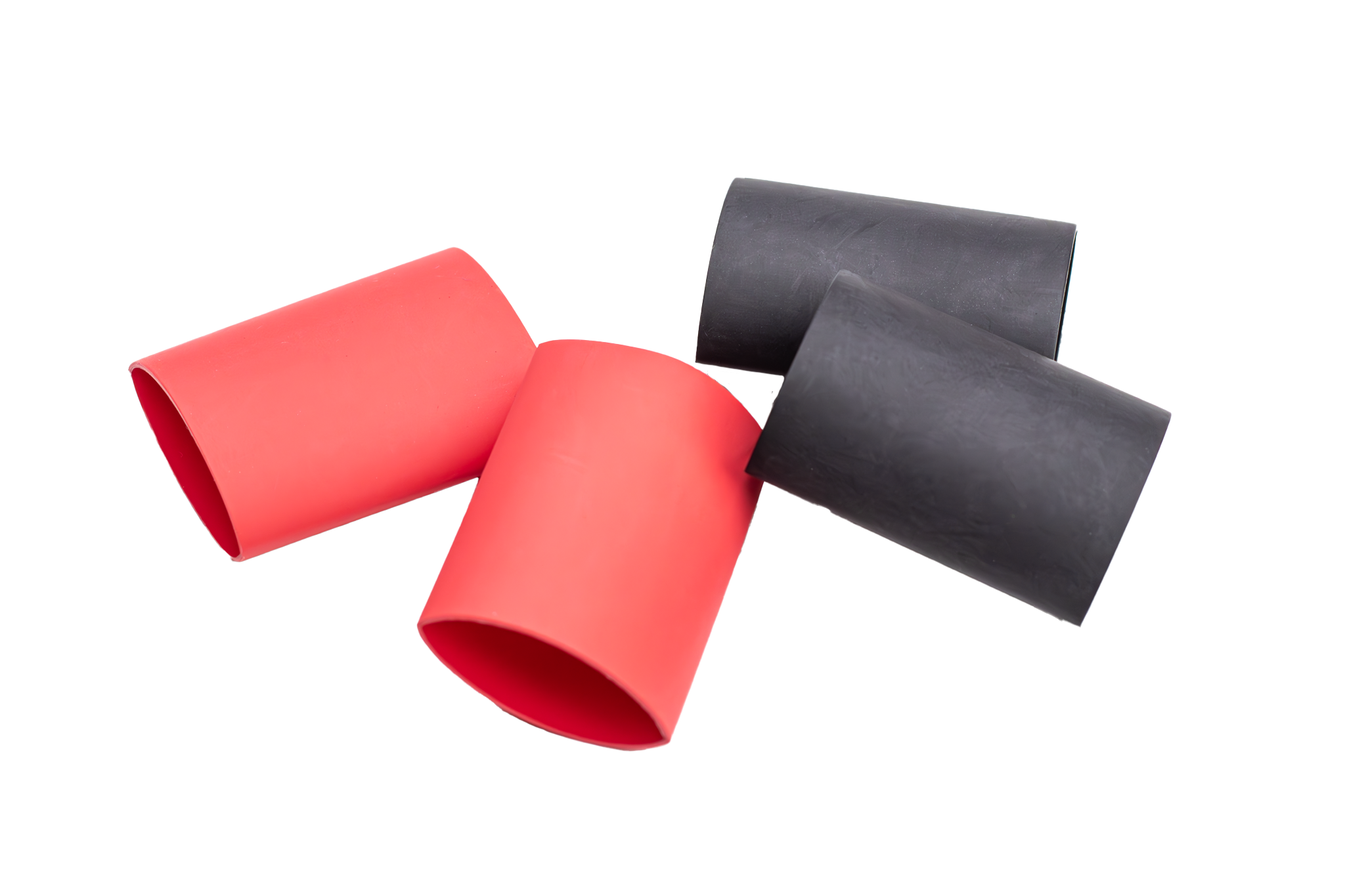

Heat Shrink

Adhesive lined Polyolefin
Length 1.5"
Shrink Ratio 3:1
Expanded Diameter 3/4"
Shrunk Diameter 1/4"
Post Shrink Wall Thickness 1/16"
Temp Range -67 to 230F
